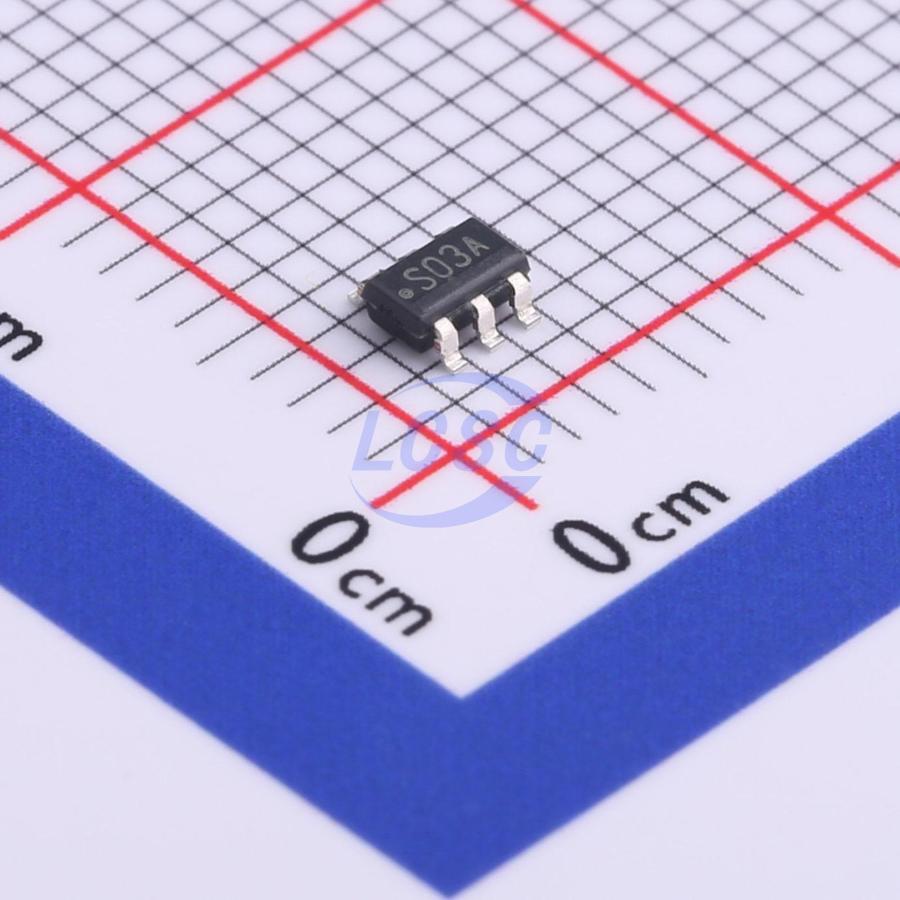

LM2664M6/NOPB
Inverted 80kHz -5.5V~-1.8V 40mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
Switched Capacitor Voltage Converter
- Manufacturer
- TI
- Manufacturer part #
- LM2664M6/NOPB
- Store part #
- C840095
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,593 in stock
#C840095
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.83 | ₹63.83 |
| 10+ | ₹51.68 | ₹516.80 |
| 30+ | ₹46.25 | ₹1,387.50 |
| 100+ | ₹39.73 | ₹3,973.00 |
| 500+ | ₹35.62 | ₹17,810.00 |
| 1,000+ | ₹33.87 | ₹33,870.00 |
1 × ₹63.83
₹63.83
excl. GST
₹75.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM2664M6/NOPB
₹63.83 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 80kHz
- Features
- Low ripple / low noise architecture;Cascade support;Low-power standby
- Operating Voltage
- 1.8V~5.5V
- Output Voltage
- -5.5V~-1.8V
- Output Current
- 40mA
- Quiescent Current
- 500uA
- Energy Efficiency
- 91%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The LM2664 CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.8 V to 5.5 V to the corresponding negative voltage of -1.8 V to -5.5 V. The device uses two low-cost capacitors to provide up to 40 mA of output current. The LM2664 operates at 160 kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 220 µA (operating efficiency greater than 91% with most loads) and 1-µA typical shutdown current, the LM2664 provides ideal performance for battery-powered systems.
Applications
- Cellular Phones
- Pagers
- PDAs
- Operational Amplifier Power Suppliers
- Interface Power Suppliers
- Handheld Instruments
Key features
- Inverts Input Supply Voltage
- 6-Pin SOT-23 Package
- 12-Ω Typical Output Impedance
- 91% Typical Conversion Efficiency at 40 mA
- 1-µA Typical Shutdown Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2664M6X/NOPB#C108573TI · SOT-23-6 | TI | SOT-23-6 | 1,69,405 | ₹48.22 · 1,69,405 in stock | View |
