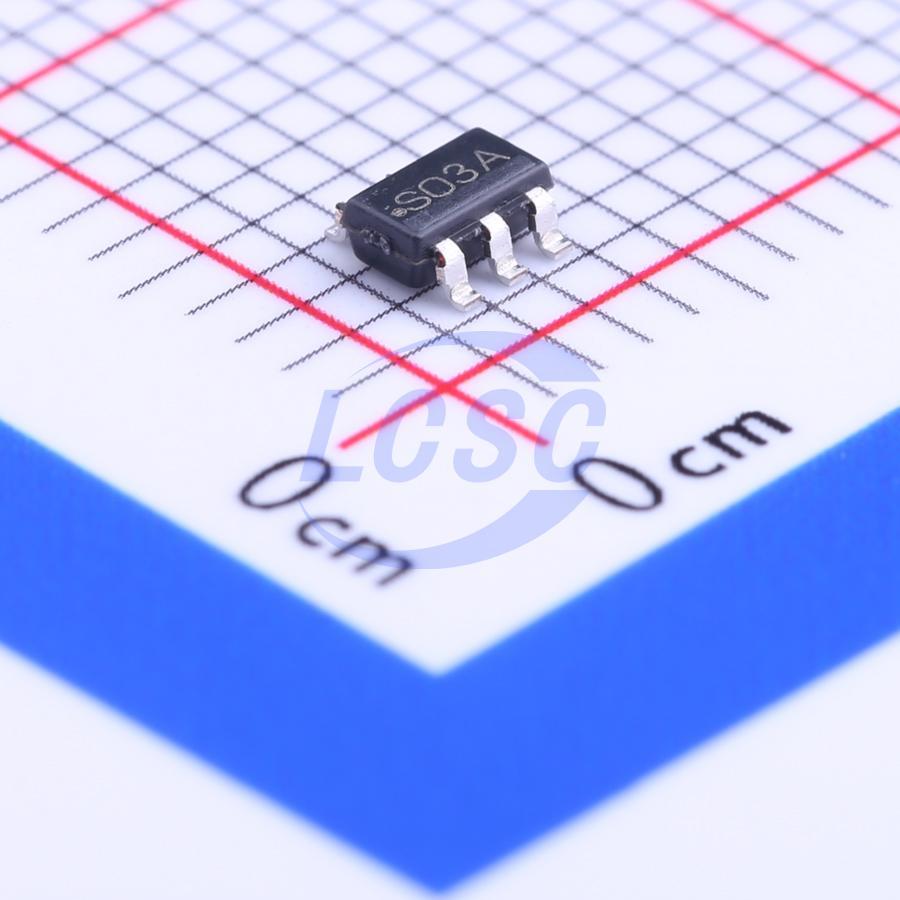

LM2664M6X/NOPB

Inverted 80kHz -5.5V~-1.8V 40mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

SOT-23-6ROHS3 CompliantActive

Switched Capacitor Voltage Converter

Manufacturer: TI
Manufacturer part #: LM2664M6X/NOPB
Store part #: C108573
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,71,150 in stock

#C108573

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹48.22	₹241.10
50+	₹37.94	₹1,897.00
150+	₹33.54	₹5,031.00
500+	₹27.04	₹13,520.00
3,000+	₹24.59	₹73,770.00
6,000+	₹23.13	₹1,38,780.00

Quantity (min 5, multiples of 5)

5 × ₹48.22

₹241.10

excl. GST

₹284.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM2664M6X/NOPB

₹241.10 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃
Function: Inverted
Frequency - Switching: 80kHz
Features: Low ripple / low noise architecture;Low-power standby;Cascade support
Operating Voltage: 1.8V~5.5V
Output Voltage: -5.5V~-1.8V
Output Current: 40mA
Quiescent Current: 220uA
Energy Efficiency: 91%

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.1 g

Overview

The LM2664 CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.8 V to 5.5 V to the corresponding negative voltage of -1.8 V to -5.5 V. The device uses two low-cost capacitors to provide up to 40 mA of output current. The LM2664 operates at 160 kHz oscillator frequency to reduce output resistance and voltage ripple. With an operating current of only 220 µA (operating efficiency greater than 91% with most loads) and 1-µA typical shutdown current, the LM2664 provides ideal performance for battery-powered systems.
