TIDatasheet (PDF)

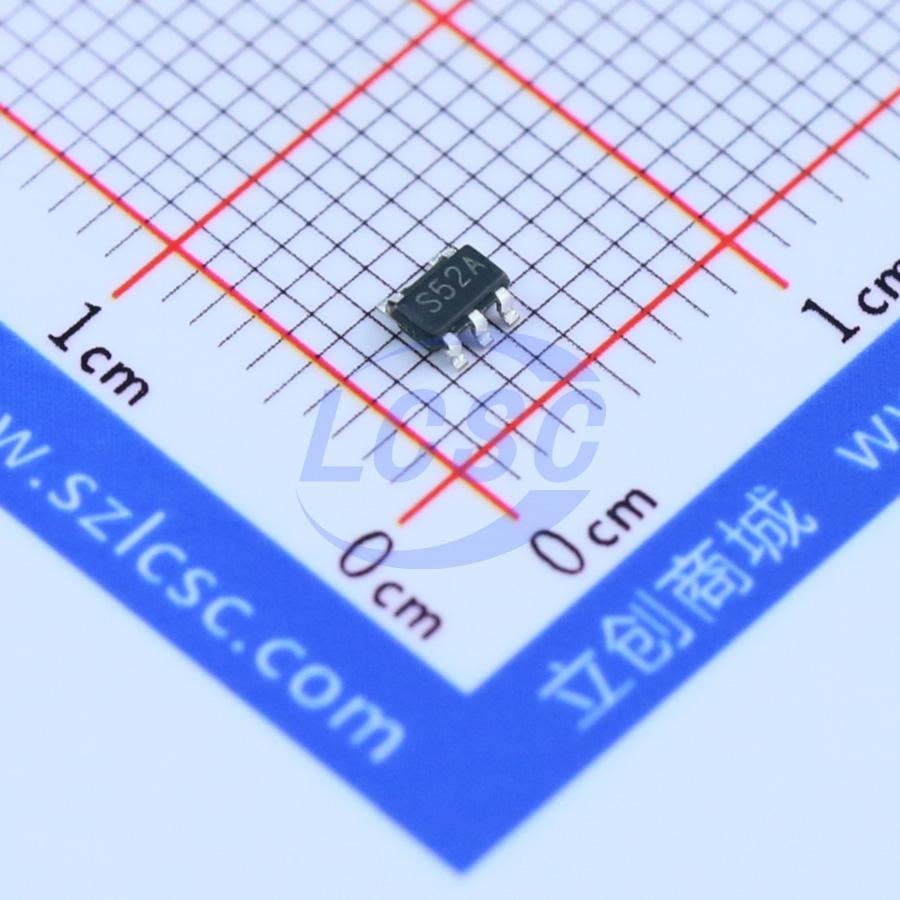

LM2733XMF/NOPB
1.6MHz Boost Adjustable 2.7V~40V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
1.6 MHz Fixed Frequency Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- LM2733XMF/NOPB
- Store part #
- C78226
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C78226
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.86 | ₹232.86 |
| 10+ | ₹198.61 | ₹1,986.10 |
| 30+ | ₹179.74 | ₹5,392.20 |
| 100+ | ₹158.28 | ₹15,828.00 |
| 500+ | ₹139.42 | ₹69,710.00 |
| 1,000+ | ₹135.08 | ₹1,35,080.00 |
1 × ₹232.86
₹232.86
excl. GST
₹274.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM2733XMF/NOPB
₹232.86 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.6MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.7V~14V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.7V~40V
- Output Current
- 1A
- Quiescent Current
- 3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The LM2733 switching regulators are current - mode boost converters operating fixed frequency of 1.6 MHz (“X” option) and 600 kHz (“Y” option). The use of SOT - 23 package, made possible by the minimal power loss of the internal 1 - A switch, and use of small inductors and capacitors result in the industry's highest power density. The 40 - V internal switch makes these solutions perfect for boosting to voltages of 16 V or greater.
Applications
- White LED Current Source
- PDA’s and Palm - Top Computers
- Digital Cameras
- Portable Phones and Games Local Boost Regulator
Key features
- 40 - V DMOS FET Switch
- 1.6 MHz (“X”), 0.6 MHz (“Y”) Switching Frequency
- Low R_DS(ON) DMOS FET Switch Current up to 1A
- Wide Input Voltage Range (2.7 - 14 V)
- Low Shutdown Current (<1 μA)
- 5 - Lead SOT - 23 Package
- Uses Tiny Capacitors and Inductors
- Cycle - by - Cycle Current Limiting
- Internally Compensated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2733XMFX/NOPB#C80169TI · SOT-23-5 | TI | SOT-23-5 | 3,736 | ₹104.27 · 3,736 in stock | View |
 | LMR64010XMFE/NOPB#C130184TI · SOT-23-5 | TI | SOT-23-5 | 68 | ₹154.00 · 68 in stock | View |
 | LMR64010XMFX/NOPB#C165138TI · SOT-23-5 | TI | SOT-23-5 | 71,313 | ₹72.99 · 71,313 in stock | View |
 | LMR64010XMF/NOPB#C2070725TI · SOT-23-5 | TI | SOT-23-5 | 1,019 | ₹120.82 · 1,019 in stock | View |
 | LM2733YMF/NOPB#C402866TI · SOT-23-5 | TI | SOT-23-5 | 2,042 | ₹98.66 · 2,042 in stock | View |
