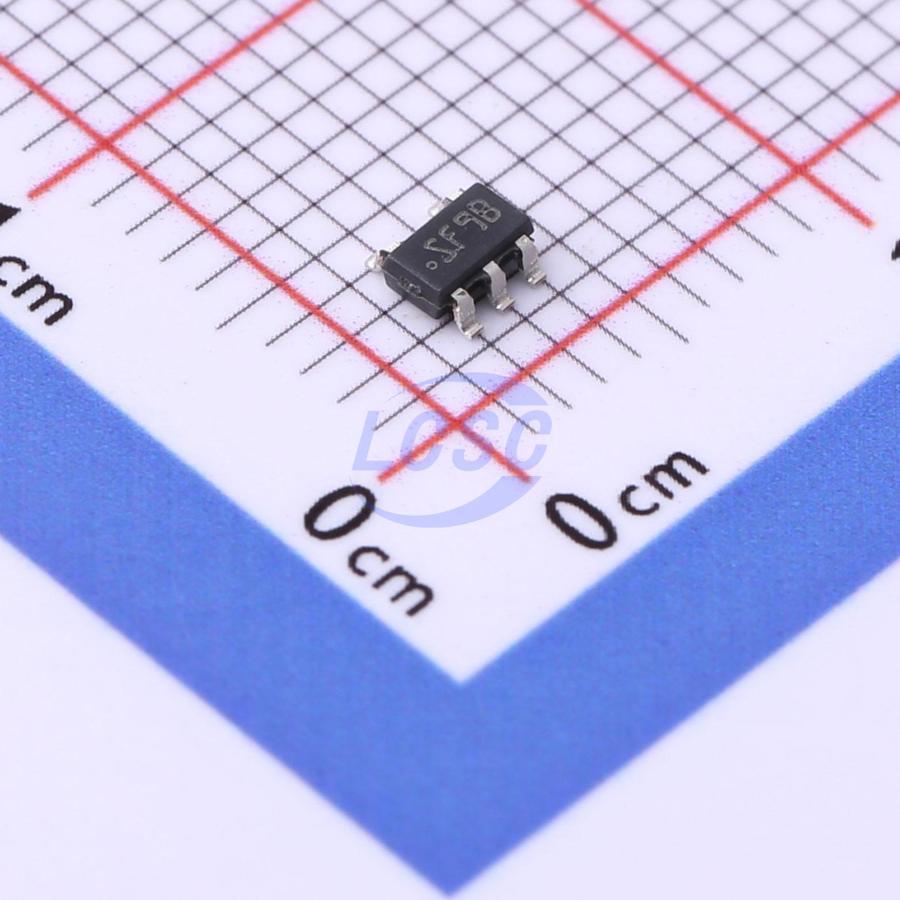

LMR64010XMF/NOPB

The LMR64010 switching regulator is a current-mode boost converter operating at a fixed frequency of 1.6 MHz. The industry-leading power density is achieved through SOT-23 packaging (enabled by an internal 1 A switch and the use of small inductors and capacitors), along with low-power-loss components. The 40 V internal switch makes these solutions ideal for boost applications up to 16 V or higher. The device features a logic-level shutdown pin that can be used to reduce quiescent current and extend battery life. Protection is provided via cycle-by-cycle current limiting and a thermal shutdown circuit. Internal compensation simplifies design and reduces component count.

Applications

• Boost conversion from 3.3 V, 5 V, and 12 V supply rails
• Space-constrained applications
• Embedded systems
• LCD displays
• LED applications

Key features

• Input voltage range: 2.7 V to 14 V
• Output voltage up to 40 V
• Switching current up to 1 A
• 1.6 MHz switching frequency
• Low shutdown quiescent current (Iq): <1 μA
• Cycle-by-cycle current limiting
• Internal compensation
• SOT23-5 package (2.92×2.84×1.08 mm)
• Fully supported by WEBENCH Power Designer tool
