onsemiDatasheet (PDF)

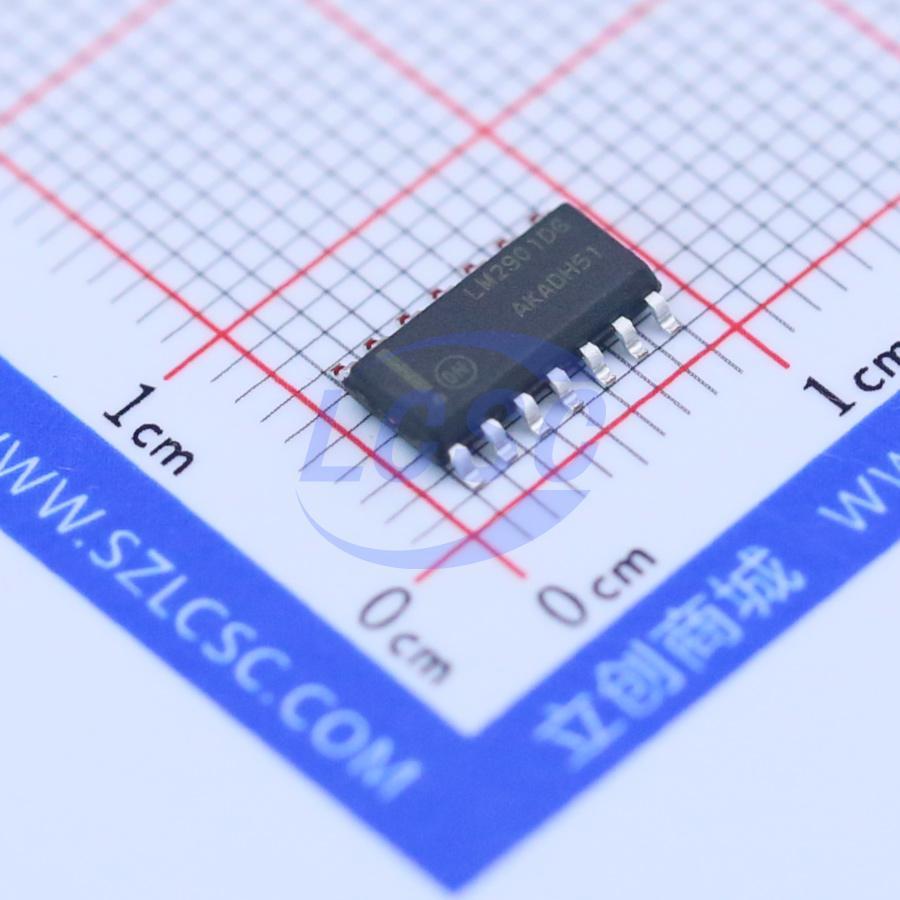

LM2901DR2G
Four channels 800uA 2mV SOIC-14 Comparators RoHS
SOIC-14ROHS3 CompliantActive
Single Supply Quad comparators
- Manufacturer
- onsemi
- Manufacturer part #
- LM2901DR2G
- Store part #
- C63822
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,635 in stock
#C63822
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.86 | ₹174.30 |
| 50+ | ₹27.62 | ₹1,381.00 |
| 150+ | ₹24.53 | ₹3,679.50 |
| 500+ | ₹20.65 | ₹10,325.00 |
| 2,500+ | ₹16.25 | ₹40,625.00 |
| 5,000+ | ₹15.21 | ₹76,050.00 |
5 × ₹34.86
₹174.30
excl. GST
₹205.67 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901DR2G
₹174.30 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- ESD protection
- Dual Supply
- 1.5V~18V;-18V~-1.5V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 300ns
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 3V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
These comparators are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
Key features
- Single Supply Operation: 3.0 V to 36 V
- Split Supply Operation: ±1.5 V to ±18 V
- Low Input Bias Current: 25 nA (Typ)
- Low Input Offset Current: ±5.0 nA (Typ)
- Low Input Offset Voltage
- Input Common Mode Voltage Range to GND
- Low Output Saturation Voltage: 130 mV (Typ) @4.0 mA
- TTL and CMOS Compatible
- ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
