XBLWDatasheet (PDF)

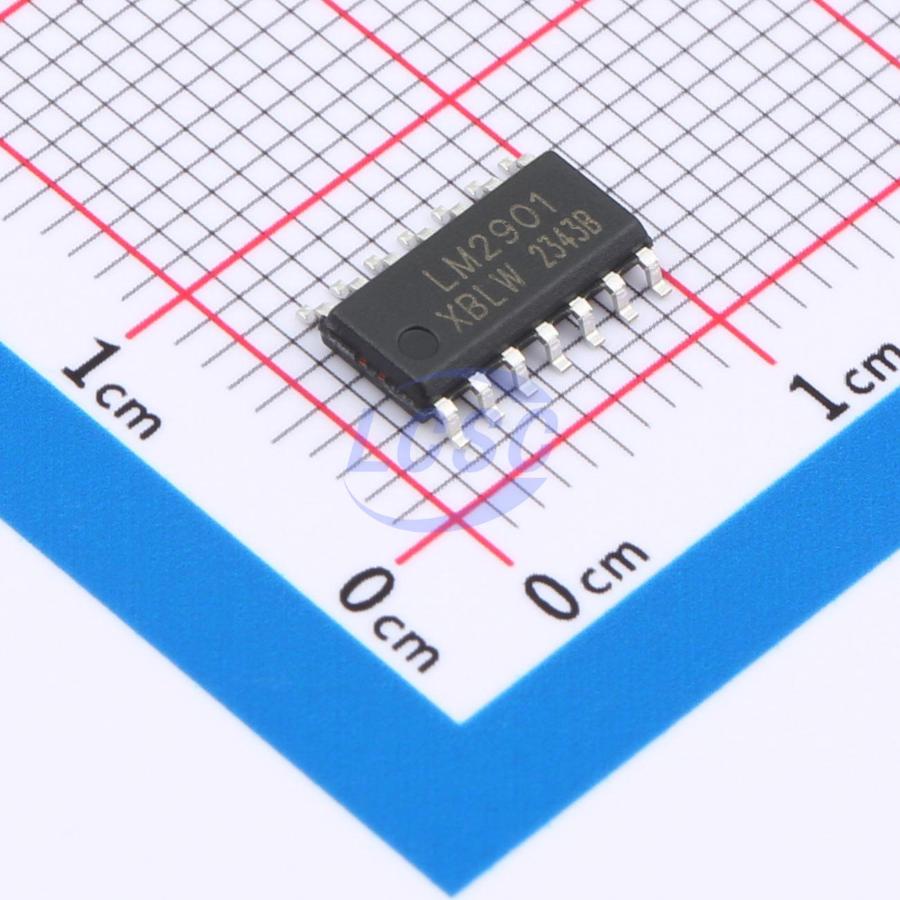

LM2901DTR(XBLW)
5mV 25nA Four channels SOP-14 Linear Comparators RoHS
SOP-14ROHS CompliantActive
Quadruple Comparator
- Manufacturer
- XBLW
- Manufacturer part #
- LM2901DTR(XBLW)
- Store part #
- C22451412
- Package / case
- SOP-14
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,130 in stock
#C22451412
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.39 | ₹71.95 |
| 50+ | ₹11.25 | ₹562.50 |
| 150+ | ₹9.67 | ₹1,450.50 |
| 500+ | ₹8.48 | ₹4,240.00 |
| 2,500+ | ₹7.54 | ₹18,850.00 |
| 5,000+ | ₹7.06 | ₹35,300.00 |
5 × ₹14.39
₹71.95
excl. GST
₹84.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901DTR(XBLW)
₹71.95 for 5 + GST
Specifications
- Dual Supply
- ±18V
- Vos - Input Offset Voltage
- 5mV
- Quiescent Current
- 2mA
- Ib - Input Bias Current
- 25nA
- Output Mode
- TTL;CMOS
- Number of Channels
- Four channels
- Propagation Delay Time
- 1.3ns
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- -20℃~+85℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.284 g
Overview
The LM2901 is a four-comparator integrated circuit designed for level detection and low level detection in consumer and industrial electronics. Adopt DIP14, SOP14 package form.
Applications
- Zero-crossing detector (dual power supply application)
- Zero-crossing detector (single-supply application)
Key features
- Single or dual power supply operation
- Low input bias current: 25nA (typical)
- Low input offset current: ± 5.0nA (typical)
- Output saturation voltage: 130mV
- Compatible with TTL and CMOS
