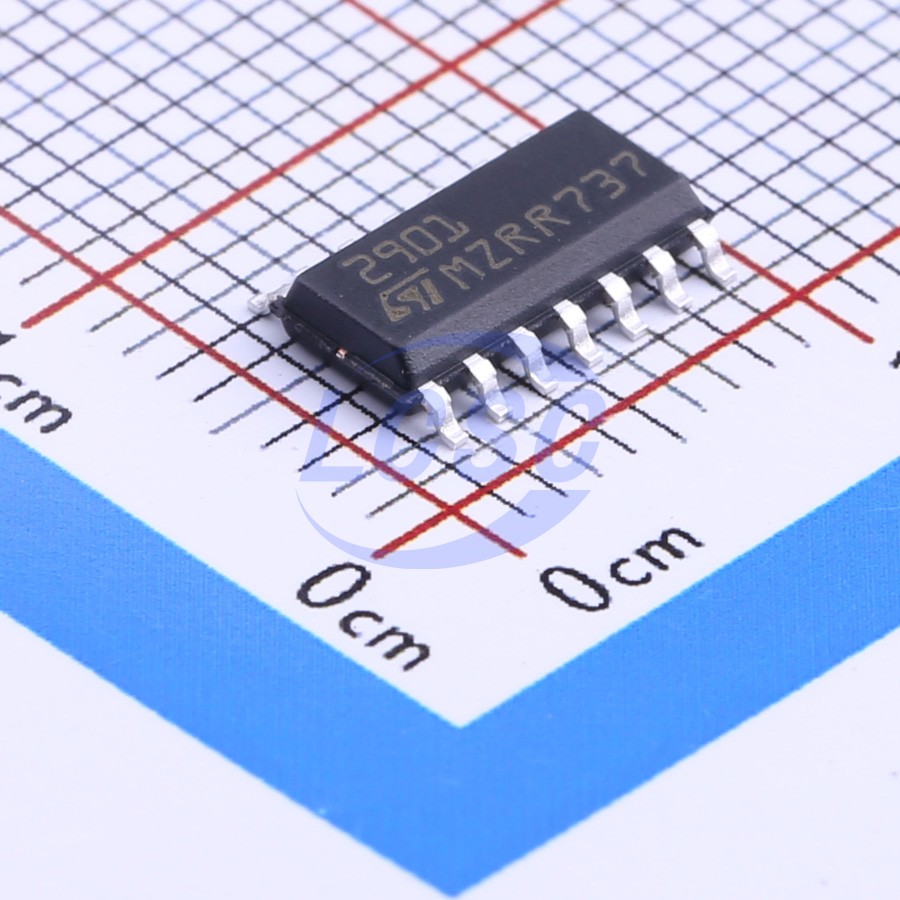

LM2901DT
Four channels 1.1mA 1mV Rail-to-rail input SOIC-14 Comparators RoHS
Low-power quad voltage comparator
- Manufacturer
- ST
- Manufacturer part #
- LM2901DT
- Store part #
- C142961
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,355 in stock
#C142961
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.76 | ₹108.80 |
| 50+ | ₹16.95 | ₹847.50 |
| 150+ | ₹14.88 | ₹2,232.00 |
| 500+ | ₹12.30 | ₹6,150.00 |
| 2,500+ | ₹11.17 | ₹27,925.00 |
| 5,000+ | ₹10.48 | ₹52,400.00 |
5 × ₹21.76
₹108.80
excl. GST
₹128.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901DT
₹108.80 for 5 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 50nA
- Output Mode
- TTL;DTL;ECL;MOS;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 1.1mA
- Vos - Input Offset Voltage
- 1mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
This device consists of four independent precision voltage comparators, which are designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.
Key features
- Wide single supply voltage range or dual supplies for all devices: +2 V to +36 V or ±1 V to ±18 V
- Very low supply current (1.1 mA) independent of supply voltage (1.4 mW/comparator at +5 V)
- Low input bias current: 25 nA typ.
- Low input offset current: ±5 nA typ.
- Input common-mode voltage range includes negative rail
- Low output saturation voltage: 250 mV typ. (I₀ = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2901DTR(XBLW)#C22451412XBLW · SOP-14 | XBLW | SOP-14 | 2,130 | ₹14.39 · 2,130 in stock | View |
 | LM2901SR#C42437068COSINE · SOP-14 | COSINE | SOP-14 | 1,790 | ₹12.58 · 1,790 in stock | View |
 | LM2901D#C5268349ST · SO-14 | ST | SO-14 | On request | Price on request | Quote |
