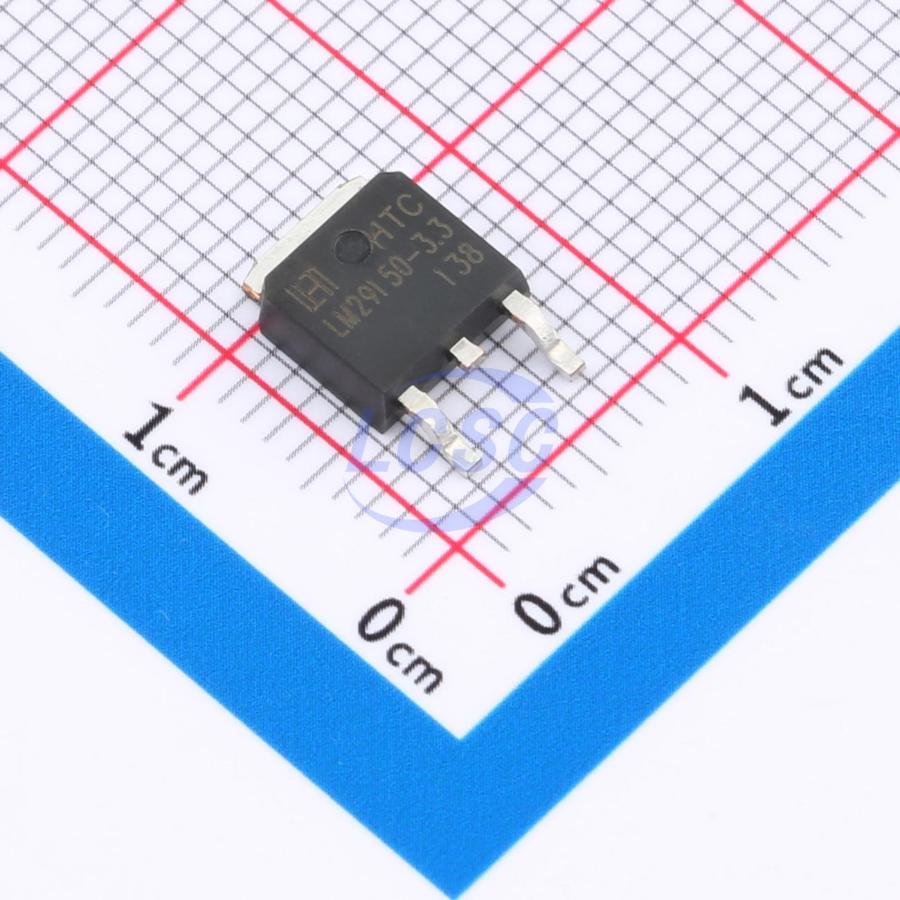

HTC

LM29150RS-3.3

3.3V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-2(DPAK)ROHS CompliantActive

1.5A Very L.D.O Voltage Regulator

Manufacturer: HTC
Manufacturer part #: LM29150RS-3.3
Store part #: C262538
Package / case: TO-252-2(DPAK)
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,364 in stock

#C262538

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹72.73	₹72.73
10+	₹57.72	₹577.20
30+	₹50.12	₹1,503.60
100+	₹42.52	₹4,252.00
500+	₹35.29	₹17,645.00
1,000+	₹32.93	₹32,930.00

Quantity (min 1)

1 × ₹72.73

₹72.73

excl. GST

₹85.82 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM29150RS-3.3

₹72.73 for 1 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 8mA
Output Configuration: Positive
Operating Voltage: 26V
Output Current: 1.5A
Features: Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Input overvoltage protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.37 g

Overview

X.X = Output Voltage =1.5, 1.8, 2.5, 3.0, 3.3, 5.0, 12 The LM29150, LM29151 and LM29152 are high current, high accuracy, and low-dropout voltage regulators. Using process with a PNP pass element, these regulators feature 350mV (full load) dropout voltages and very low ground current. These devices also find applications in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. The LM29150, LM29151 and LM29152 are fully protected against over current faults, reversed input polarity, reversed lead insertion, over temperature operation, and positive and negative transient voltage spikes. LM29151 features logic level enable control and an error flag which signals whenever the output falls out of regulation. On the LM29151 and LM29152, the ENABLE pin may be tied to Vin if it is not required for ON/OFF control.

Applications

Battery Powered Equipment
High-Efficiency " Green" Computer System
Automotive Electronics
High-Efficiency Linear Power Supplies
High-Efficiency Post-Regulator For Switching Supply

Key features

High Current Capability 1.5A
Low Dropout Voltage 350mV
Low Ground Current
Accurate 1% Guaranteed Initial Tolerance
Extremely Fast Transient Response
Reverse-Battery and "Load Dump" Protection
Zero-Current Shutdown Mode(5-Pin Version)
Error Flag Signals Output out-of-Regulation (5-Pin Version)
Also Characterized For Smaller Loads With Industry -Leading Performance specifications
Fixed Voltage and Adjustable Versions
Moisture Sensitivity Level 3
