UTCDatasheet (PDF)

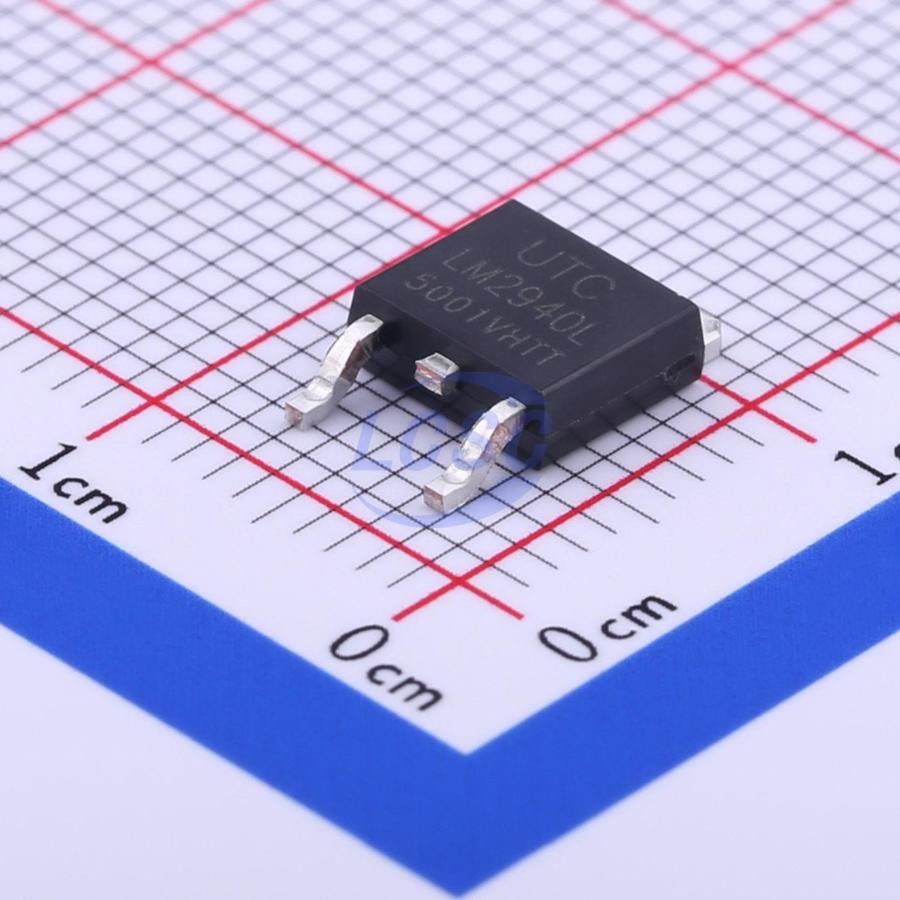

LM2940L-50-TN3-R
Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-2(DPAK)
TO-252-2(DPAK)ROHS CompliantActive
1A Low Dropout Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- LM2940L-50-TN3-R
- Store part #
- C85225
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,260 in stock
#C85225
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.96 | ₹214.80 |
| 50+ | ₹33.64 | ₹1,682.00 |
| 150+ | ₹29.66 | ₹4,449.00 |
| 500+ | ₹24.24 | ₹12,120.00 |
| 2,500+ | ₹22.03 | ₹55,075.00 |
| 5,000+ | ₹20.69 | ₹1,03,450.00 |
5 × ₹42.96
₹214.80
excl. GST
₹253.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2940L-50-TN3-R
₹214.80 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 1A
- Features
- Reverse polarity voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.504 g
Overview
The UTC LM2940 is a low dropout regulator designed to provide output current up to 1A with a typically 500mV dropout Voltage and a maximum of 1V. It is capable of reducing the ground current when the differential between the input voltage and the output voltage outrun 3V. UTC LM2940 offers low quiescent current (typically 30mA at 1A and an input-output differential of 5V). Higher quiescent currents only exist when the regulator is in the dropout mode (VIN - VOUT ≤ 3V).
Key features
- 500mV Typically Dropout at 1A
- Output Current in Excess of 1A
- Low Quiescent Current
- Reversed-Battery Protection
- Current Limit and Thermal Shutdown
- Mirror Image Insertion Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78D05AL-TN3-R#C75493UTC · TO-252-2(DPAK) | UTC | TO-252-2(DPAK) | 695 | ₹21.63 · 695 in stock | View |
 | 78M05#C5371010TECH PUBLIC · TO-252-2 | TECH PUBLIC | TO-252-2 | 6,820 | ₹12.38 · 6,820 in stock | View |
 | PJ78D05TE#C36493733PJSEMI · TO-252 | PJSEMI | TO-252 | 70 | ₹22.19 · 70 in stock | View |
 | 78D05L#C347284UMW · TO-252-2 | UMW | TO-252-2 | 6,295 | ₹15.29 · 6,295 in stock | View |
 | KIA7805AF-RTF/PQ#C22376607KEC · DPAK | KEC | DPAK | 4,860 | ₹31.51 · 4,860 in stock | View |
