HTCDatasheet (PDF)

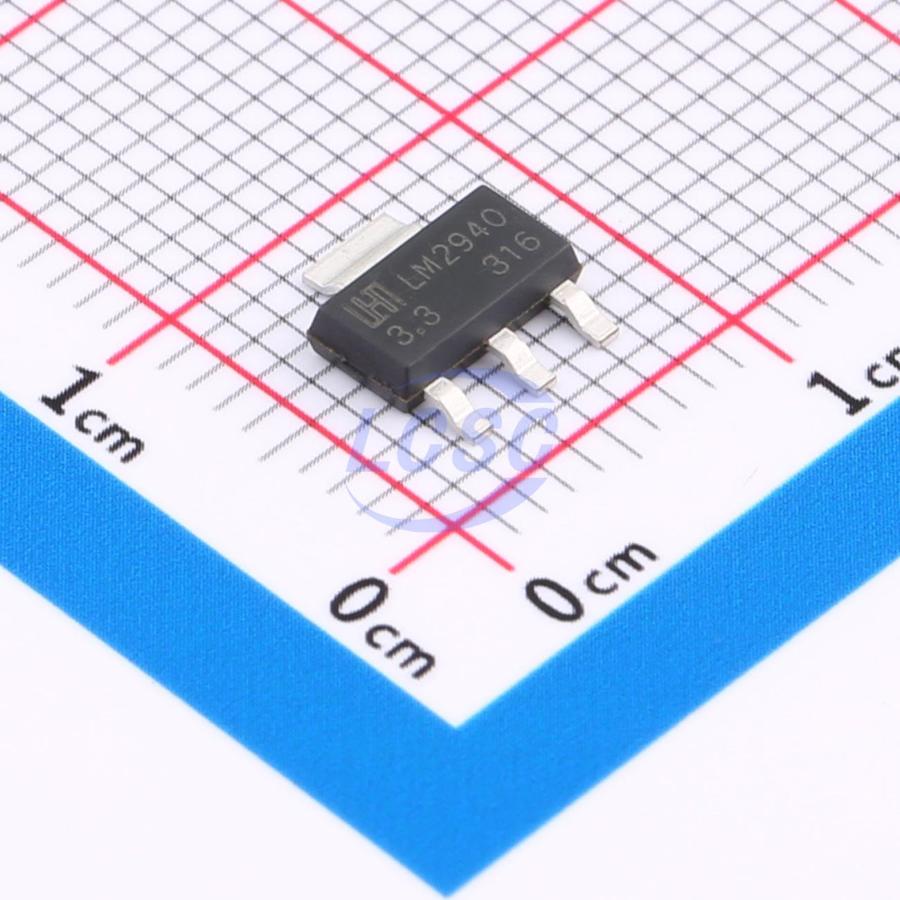

LM2940S-3.3
3.3V Positive Fixed SOT-223-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223-3LROHS CompliantActive
1A Low Dropout Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM2940S-3.3
- Store part #
- C596335
- Package / case
- SOT-223-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,484 in stock
#C596335
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.34 | ₹58.34 |
| 10+ | ₹44.96 | ₹449.60 |
| 30+ | ₹39.12 | ₹1,173.60 |
| 100+ | ₹31.77 | ₹3,177.00 |
| 500+ | ₹28.52 | ₹14,260.00 |
| 1,000+ | ₹26.58 | ₹26,580.00 |
1 × ₹58.34
₹58.34
excl. GST
₹68.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2940S-3.3
₹58.34 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 500uA
- Output Configuration
- Positive
- Operating Voltage
- 26V
- Output Current
- 1A
- Features
- Reverse polarity voltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.181 g
Overview
The LM2940 regulator features the ability to source 1A of output current with a dropout voltage of typically 0.4V and maximum of 0.63V over the entire temperature range. These device also finds applications in lower current, low dropout-critical systems, where their tiny dropout voltage and ground current values are important attributes. LM2940 is available as fixed 3.3V, 5.0V output voltages. The LM2940 is offered in a SOT-223-3L and TO-220-3L.
Applications
- Battery Powered Equipment
- High-Efficiency “Green” Computer Systems
- Automotive Electronics
- High-Efficiency Linear Power Supplies
- High-Efficiency Post-Regulator For Switching Supply
Key features
- Guaranteed Output Current of 1A
- Maximum Input Voltage 26V
- Low Dropout Voltage 400mV
- Low Ground Current
- Accurate 1% Guaranteed Tolerance
- Extremely Fast Transient Response
- Reverse Battery Protection
- Over-Temperature / Over-Current Protection
- Available in SOT-223-3L and TO-220-3L Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD7601B33#C2978496Mingda Microelectronics · SOT-223 | Mingda Microelectronics | SOT-223 | 10 | ₹33.37 · 10 in stock | View |
 | LM2940HS-3.3#C784715HTC · SOT-223-3L | HTC | SOT-223-3L | 311 | ₹108.53 · 311 in stock | View |
| MCT1117C-3.3-TP#C7301288MCC · SOT-223 | MCC | SOT-223 | 4,015 | ₹12.91 · 4,015 in stock | View | |
 | SSP1117-3.3V#C277892Siproin · SOT-223-3 | Siproin | SOT-223-3 | 34,200 | ₹10.50 · 34,200 in stock | View |
 | NCP1117ST33T3G#C26537onsemi · SOT-223 | onsemi | SOT-223 | 68,970 | ₹31.01 · 68,970 in stock | View |
