TDSEMIC

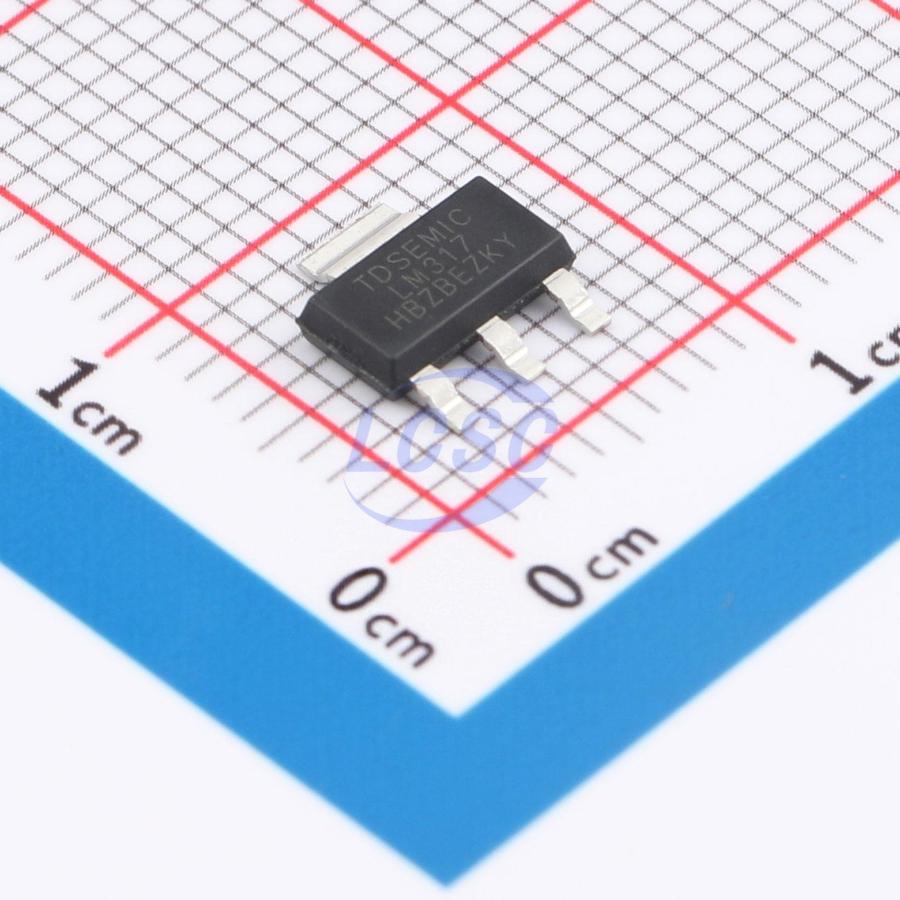

LM317

1.25V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223ROHS CompliantActive

1.5A Bipolar Linear Regulator

Manufacturer: TDSEMIC
Manufacturer part #: LM317
Store part #: C22466422
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,515 in stock

#C22466422

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹15.76	₹78.80
50+	₹12.24	₹612.00
150+	₹10.46	₹1,569.00
500+	₹9.14	₹4,570.00
2,500+	₹8.10	₹20,250.00
5,000+	₹7.57	₹37,850.00

Quantity (min 5, multiples of 5)

5 × ₹15.76

₹78.80

excl. GST

₹92.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317

₹78.80 for 5 + GST

Specifications

Output Voltage: 1.25V~37V
Number of Outputs: 1
Operating Temperature: -20℃~+85℃@(Ta)
Supply Current (Iq): 1.5mA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1.5A
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.234 g

Overview

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5A over an output-voltage range of 1.25V to 37V. LM317 features a very low standby current 1.5mA. 317 is available in SOT89-3, TO220 and SOT223 package. 317 device is an adjustable three-terminal positive-voltage regulator capable of supplying up to 1.5A over an output voltage range of 1.25V to 37V. It requires only two external resistors to set the output voltage. The device features a typical line regulation of 1mV and typical load regulation of 7mV. The 317 device is versatile in its applications, including uses in programmable output regulation and local on-card regulation. Or, by connecting a fixed resistor between the ADJUST and OUTPUT terminals, the 317 device can function as a precision current regulator. An optional output capacitor can be added to improve transient response.
