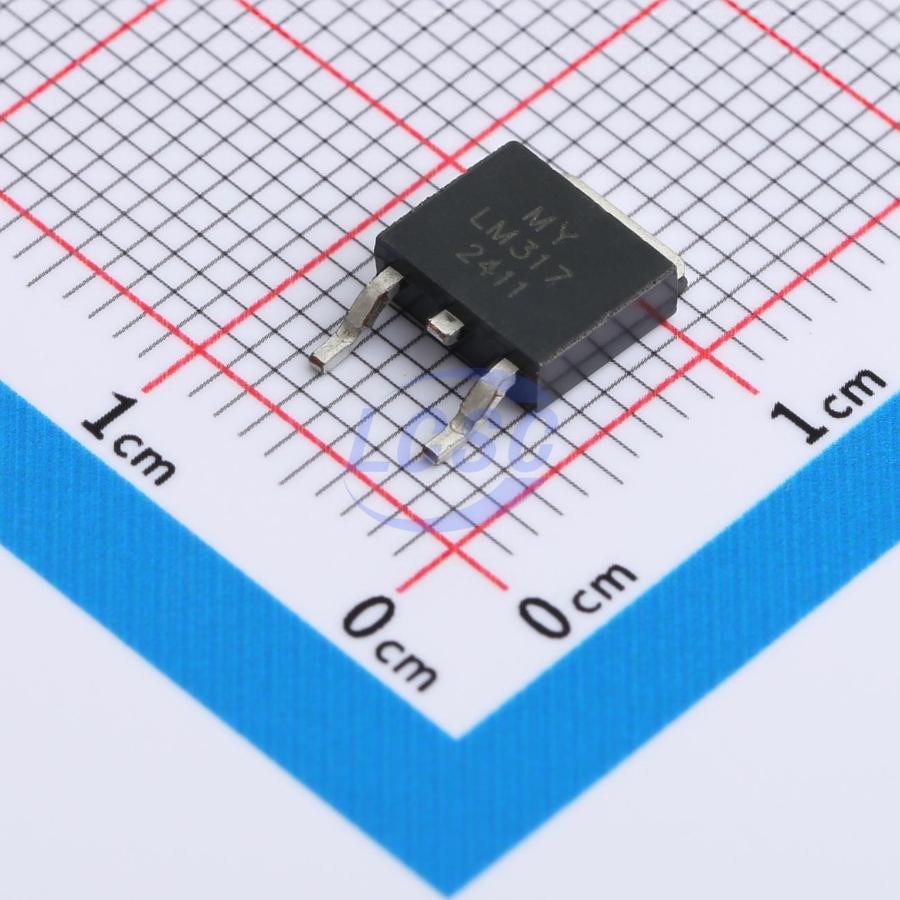

LM317
1.2V~37V Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
3-pin 1.5A positive adjustable voltage regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- LM317
- Store part #
- C41366918
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,255 in stock
#C41366918
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.03 | ₹125.15 |
| 50+ | ₹19.78 | ₹989.00 |
| 150+ | ₹17.53 | ₹2,629.50 |
| 500+ | ₹14.71 | ₹7,355.00 |
| 2,500+ | ₹13.47 | ₹33,675.00 |
| 5,000+ | ₹12.71 | ₹63,550.00 |
5 × ₹25.03
₹125.15
excl. GST
₹147.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317
₹125.15 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Positive
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.449 g
Overview
The LM317 are monolithic integrated circuit in TO-252 package sintended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators
Applications
- Programmable voltage regulator
- Regulator with On-off control
- Soft Start Application
- Constant Current Application
Key features
- Output Voltage Range: 1.2V to 37V
- Output Current in excess of 1.5A
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe Operating Area Compensation
