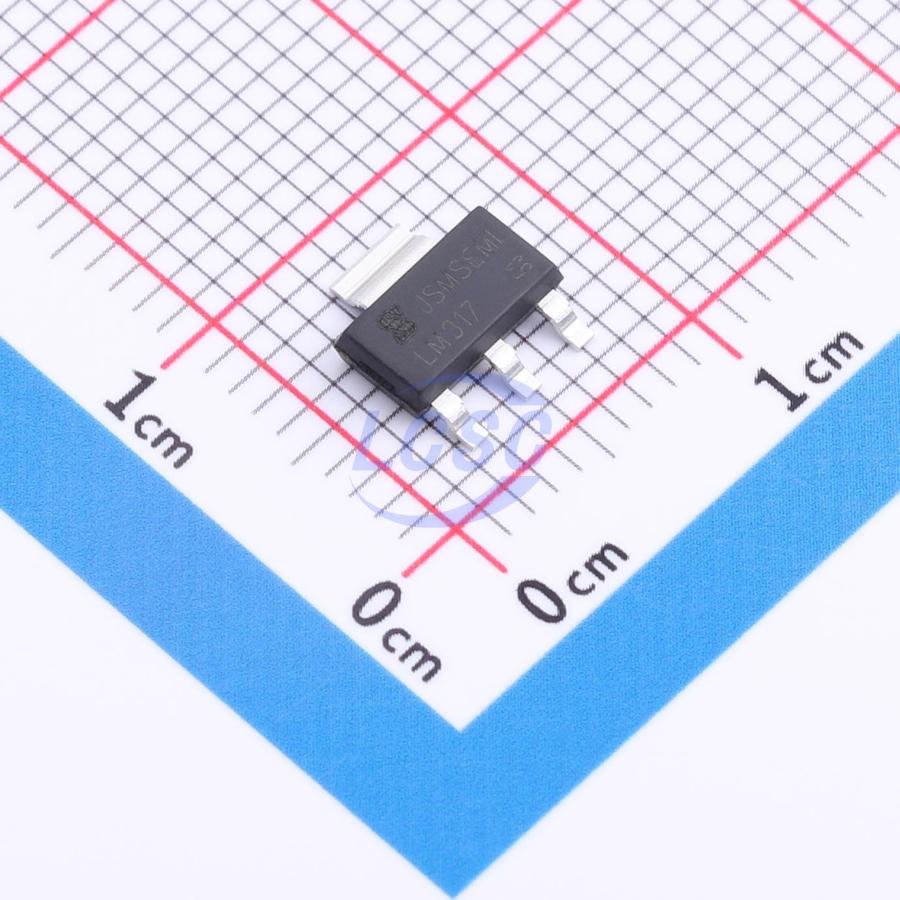

JSMSEMI

LM317

1.3V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223ROHS CompliantActive

High Current 1.3V to 37V Adjustable Voltage Regulator

Manufacturer: JSMSEMI
Manufacturer part #: LM317
Store part #: C5296732
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

47,740 in stock

#C5296732

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.06	₹55.30
50+	₹8.60	₹430.00
150+	₹7.37	₹1,105.50
500+	₹6.44	₹3,220.00
2,500+	₹6.39	₹15,975.00
5,000+	₹6.02	₹30,100.00

Quantity (min 5, multiples of 5)

5 × ₹11.06

₹55.30

excl. GST

₹65.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317

₹55.30 for 5 + GST

Specifications

Output Voltage: 1.3V~37V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1A
Features: Short Circuit Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.26 g

Overview

The LM317 is an adjustable 3-terminal positive voltage regulator, designed to supply 1A of output current with voltage adjustable from 1.3V ~ 37V.

Key features

Output voltage adjustable from 1.3V ~ 37V
Output current in excess of 1A
Internal short circuit protection.
Internal over temperature protection.
Output transistor safe area compensation
