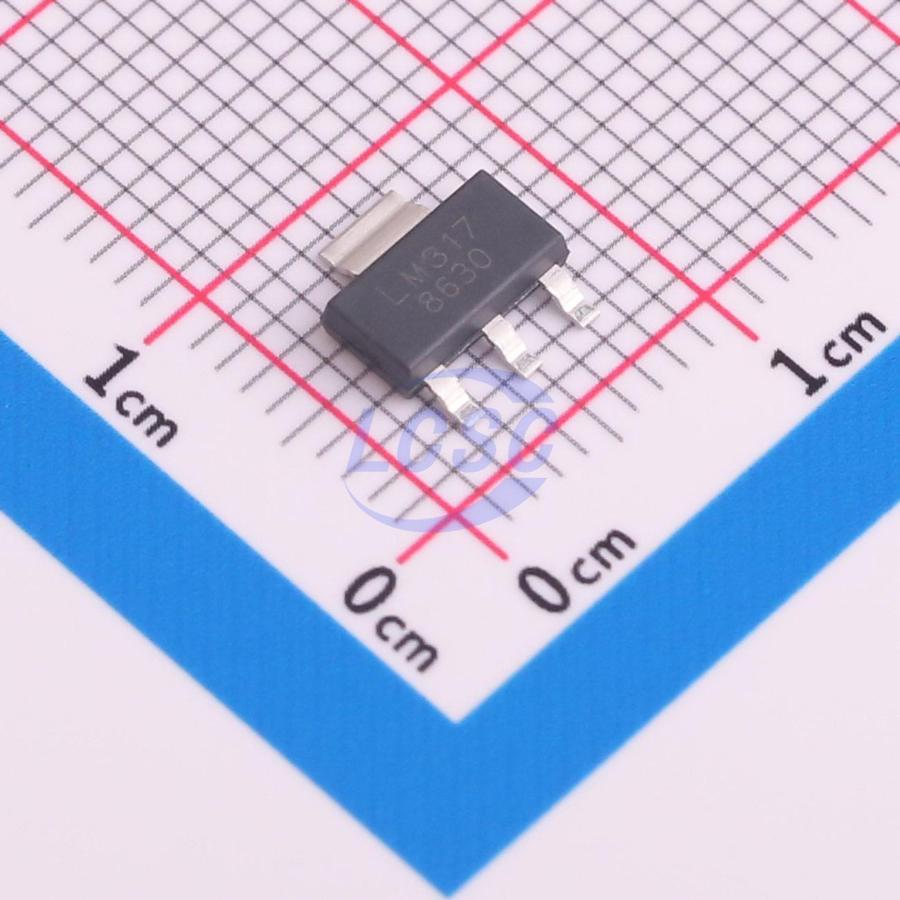

Siproin

LM317

1.25V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223RoHSActive

1.5A Bipolar Linear Regulator

Manufacturer: Siproin
Manufacturer part #: LM317
Store part #: C5444278
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,420 in stock

#C5444278

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹14.49	₹72.45
50+	₹12.83	₹641.50
150+	₹12.00	₹1,800.00
500+	₹11.39	₹5,695.00
2,500+	₹10.48	₹26,200.00
5,000+	₹10.23	₹51,150.00

Quantity (min 5, multiples of 5)

5 × ₹14.49

₹72.45

excl. GST

₹85.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317

₹72.45 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.25V~37V
Number of Outputs: 1
Operating Temperature: -55℃~+150℃@(Tj)
Supply Current (Iq): 1.5mA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1.5A
Features: Thermal shutdown;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.249 g

Overview

The LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying more than 1.5A over an output-voltage range of 1.25V to 37V. LM317 features a very low standby current 1.5mA. LM317 is available in SOT-223、TO-252、TO263-2 and TO-220 package. LM317 device is an adjustable three-terminal positive-voltage regulator capable of supplying up to 1.5A over an output-voltage range of 1.25V to 37V. It requires only two external resistors to set the ouput voltage. The LM317 device is versatile in its applications, including uses in programmable output regulation and local on-card regulation. Or, by connecting a fixed resistor between the ADJ and OUTPUT terminals, the LM317 device can function as a precision current regulator. An optional output capacitor can be added to improve transient response.
