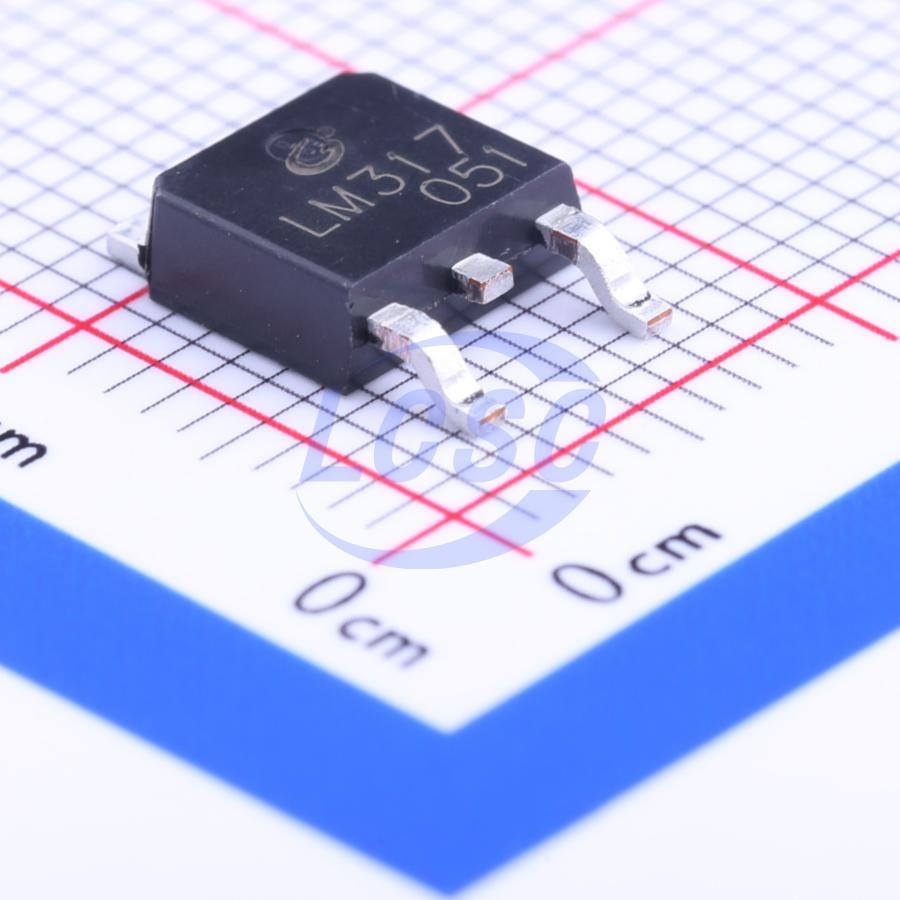

JSCJ

LM317

1.2V~37V Positive Adjustable TO-252-2L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252-2LROHS CompliantActive

ADJ Input 40V Output 1.2V~37V 1.5A

Manufacturer: JSCJ
Manufacturer part #: LM317
Store part #: C77880
Package / case: TO-252-2L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,165 in stock

#C77880

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹36.42	₹182.10
50+	₹29.42	₹1,471.00
150+	₹26.42	₹3,963.00
500+	₹22.68	₹11,340.00
2,500+	₹20.14	₹50,350.00
5,000+	₹19.14	₹95,700.00

Quantity (min 5, multiples of 5)

5 × ₹36.42

₹182.10

excl. GST

₹214.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317

₹182.10 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Tj)
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1.5A
Features: Thermal shutdown;Short Circuit Protection;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.516 g

Overview

This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting, thermal shut-down and safe area compensation.
