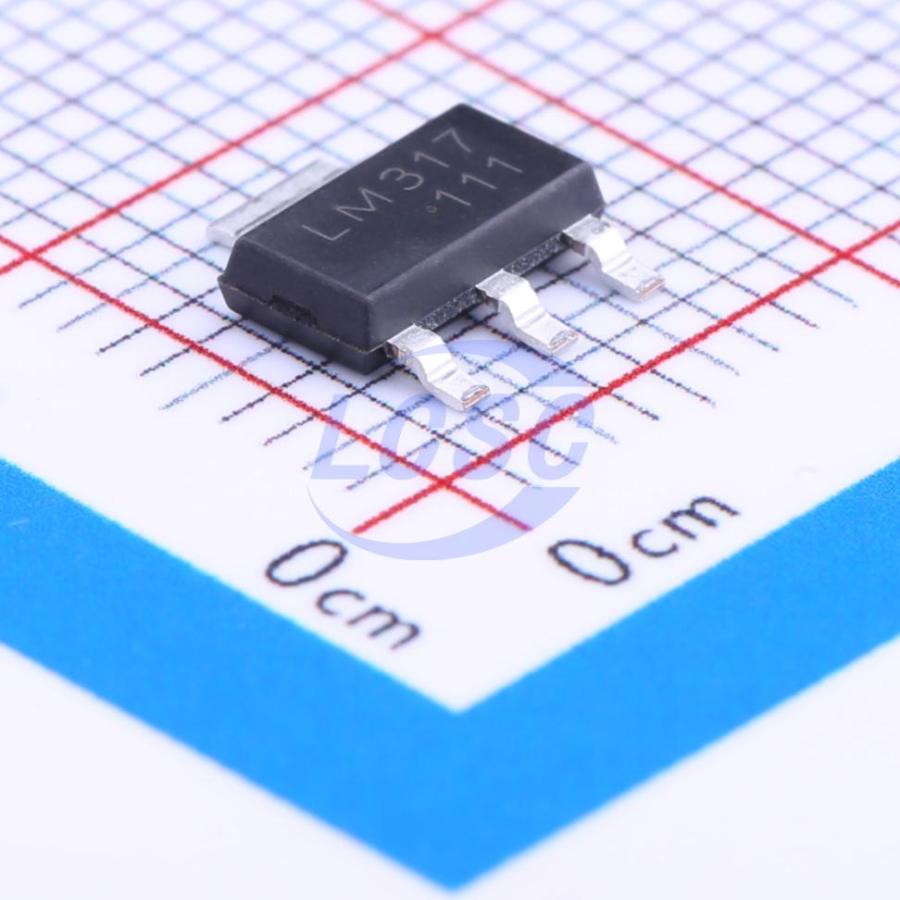

JSCJ

LM317

1.2V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223ROHS CompliantActive

ADJ Input 40V Output 1.2V~37V 1.5A

Manufacturer: JSCJ
Manufacturer part #: LM317
Store part #: C84244
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

7,205 in stock

#C84244

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹40.01	₹200.05
50+	₹32.57	₹1,628.50
150+	₹29.37	₹4,405.50
500+	₹25.40	₹12,700.00
2,500+	₹22.15	₹55,375.00
5,000+	₹21.09	₹1,05,450.00

Quantity (min 5, multiples of 5)

5 × ₹40.01

₹200.05

excl. GST

₹236.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317

₹200.05 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Tj)
Supply Current (Iq): 46uA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1A
Features: Thermal shutdown;Short Circuit Protection;Over Current Protection
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.331 g

Overview

This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting, thermal shut-down and safe area compensation.
