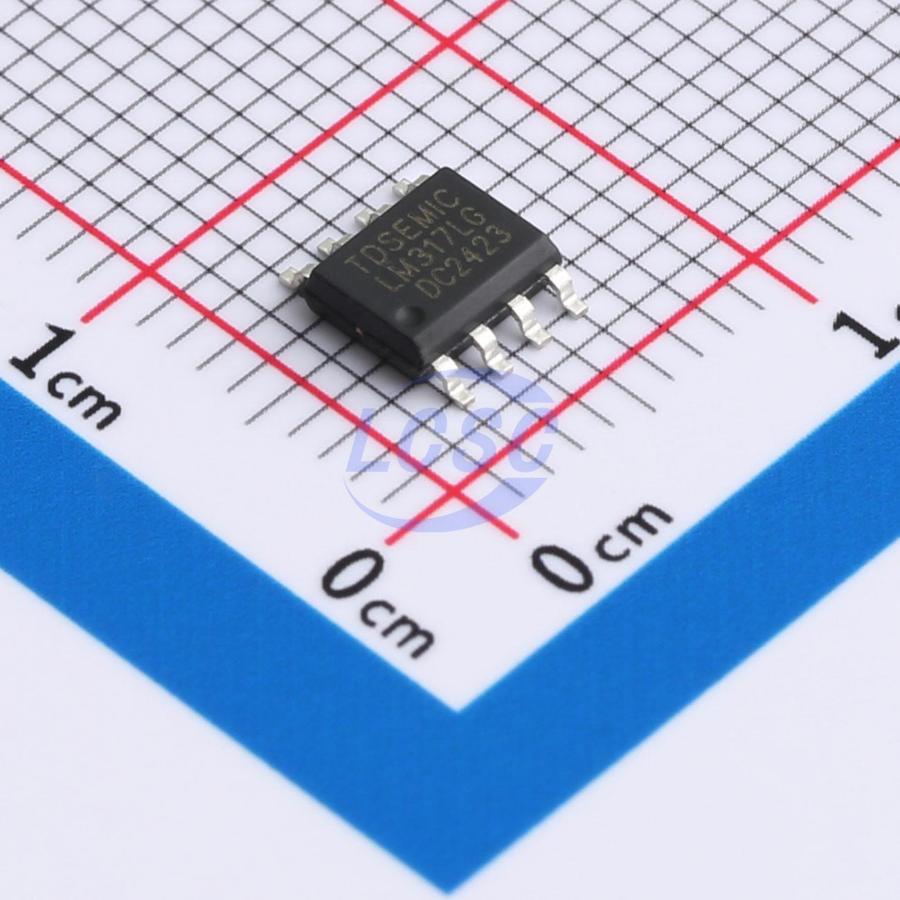

LM317(SOP8)
1.2V~37V Positive Adjustable SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS CompliantActive
3-Terminal Adjustable Regulator Circuit
- Manufacturer
- TDSEMIC
- Manufacturer part #
- LM317(SOP8)
- Store part #
- C22472158
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C22472158
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.91 | ₹59.55 |
| 50+ | ₹9.45 | ₹472.50 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.29 | ₹3,645.00 |
| 2,500+ | ₹6.55 | ₹16,375.00 |
| 5,000+ | ₹6.18 | ₹30,900.00 |
5 × ₹11.91
₹59.55
excl. GST
₹70.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317(SOP8)
₹59.55 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 100mA
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.001 g
Overview
The LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying 100mA over a 1.2V to 37V output range. It is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. Also, the LM317 is available packaged in a standard TO92, SOP8, SOT89 - 3 transistor package which is easy to use. The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.
Key features
- Adjustable output down to 1.2V
- Guaranteed 100mA output current
- Line regulation typically 0.01% V
- Load regulation typically 0.1%
- Current limit constant with temperature
- Eliminates the need to stock many voltages
- 80 dB ripple rejection
- Output is short circuit protected
