TDSEMIC

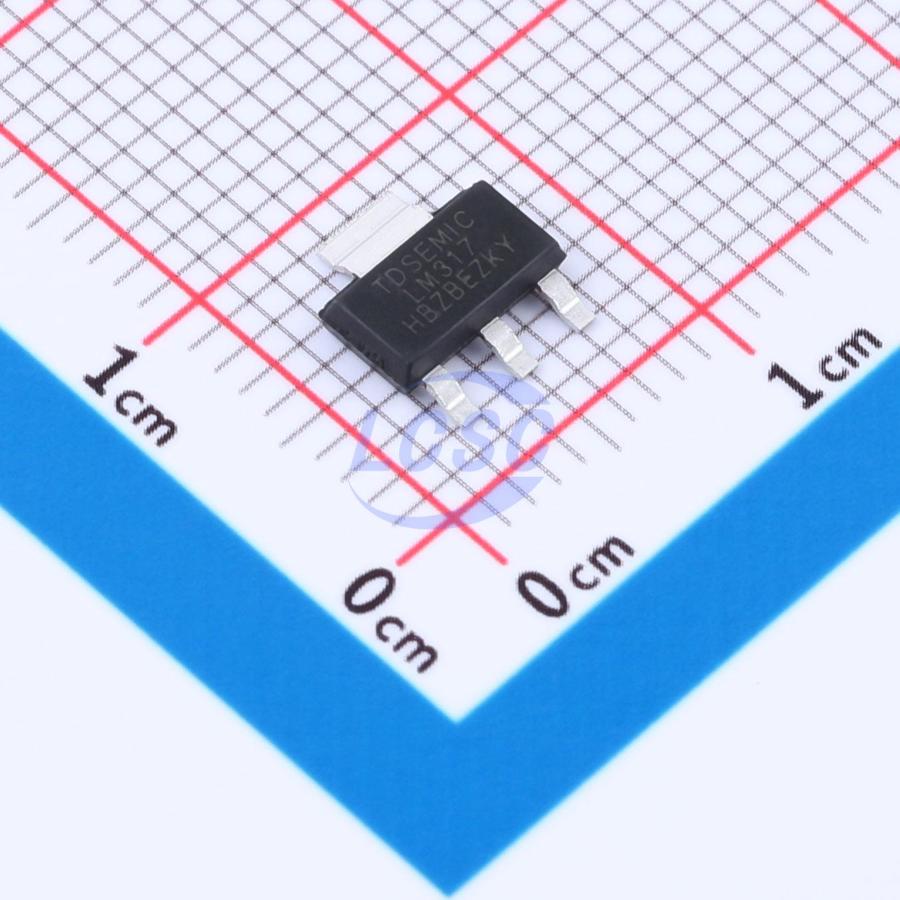

LM317-TD

1.25V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223RoHSActive

Manufacturer: TDSEMIC
Manufacturer part #: LM317-TD
Store part #: C53202416
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,195 in stock

#C53202416

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
5+	₹13.64	₹68.20
50+	₹10.81	₹540.50
150+	₹9.41	₹1,411.50
500+	₹8.35	₹4,175.00
2,500+	₹7.50	₹18,750.00
5,000+	₹7.06	₹35,300.00

Quantity (min 5, multiples of 5)

5 × ₹13.64

₹68.20

excl. GST

₹80.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317-TD

₹68.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.25V~37V
Operating Temperature: -20℃~+85℃
Supply Current (Iq): 1.5mA
Output Configuration: Positive
Output Current: 1.5A
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.233 g

Overview

The LM317-TD is an adjustable 3-terminal positive voltage regulator capable of supplying more than 1.5A over an output voltage range of 1.25V to 37V. The device features very low quiescent current with a typical value of 1.5mA. The LM317-TD is available in multiple packages, including SOT89-3, TO220, and SOT223. It requires only two external resistors to set the output voltage, with a typical line regulation of 1mV and a typical load regulation of 7mV. The device is highly versatile and suitable for programmable output regulation and on-board local regulation. By connecting a fixed resistor between the ADJUST and OUTPUT pins, it can also be used as a precision current regulator. An output capacitor may optionally be added to improve transient response.
