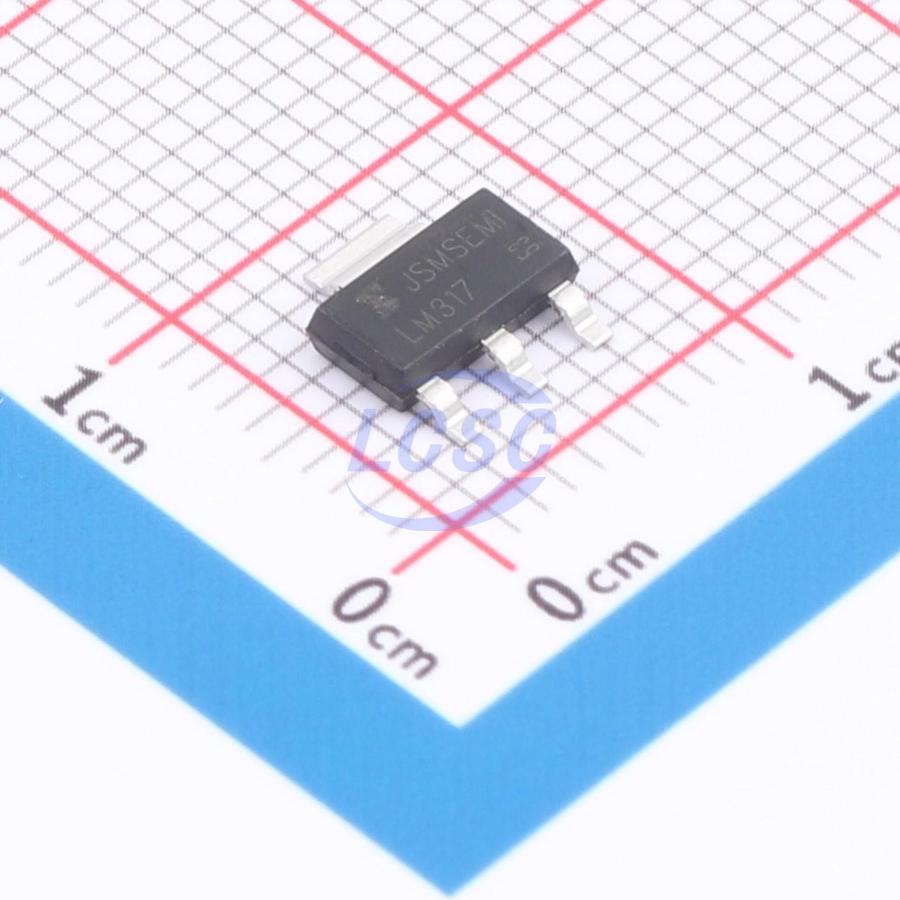

LM317AG-JSM
1.25V~32V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
IC REG LINEAR 1.25V~32V 1.5A SOT-223
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM317AG-JSM
- Store part #
- C50202103
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,065 in stock
#C50202103
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.55 | ₹77.75 |
| 50+ | ₹12.16 | ₹608.00 |
| 150+ | ₹10.46 | ₹1,569.00 |
| 500+ | ₹9.19 | ₹4,595.00 |
| 2,500+ | ₹8.81 | ₹22,025.00 |
| 5,000+ | ₹8.30 | ₹41,500.00 |
5 × ₹15.55
₹77.75
excl. GST
₹91.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317AG-JSM
₹77.75 for 5 + GST
Specifications
- Output Voltage
- 1.25V~32V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Output Current
- 1.5A
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.234 g
Overview
LM317 is an adjustable three-terminal positive voltage regulator designed to provide 1.5A output current with an adjustable voltage range of 1.25V to 32V.
Applications
- PC motherboards
- LCD monitors
- Graphics cards
- DVD players
- Network interface cards/switches
Key features
- Typical 1% output voltage accuracy
- Output voltage adjustable from 1.25V to 32V
- Output current exceeding 1.5A
- Internal short-circuit protection
- Internal over-temperature protection
- Output transistor safe operating area compensation
