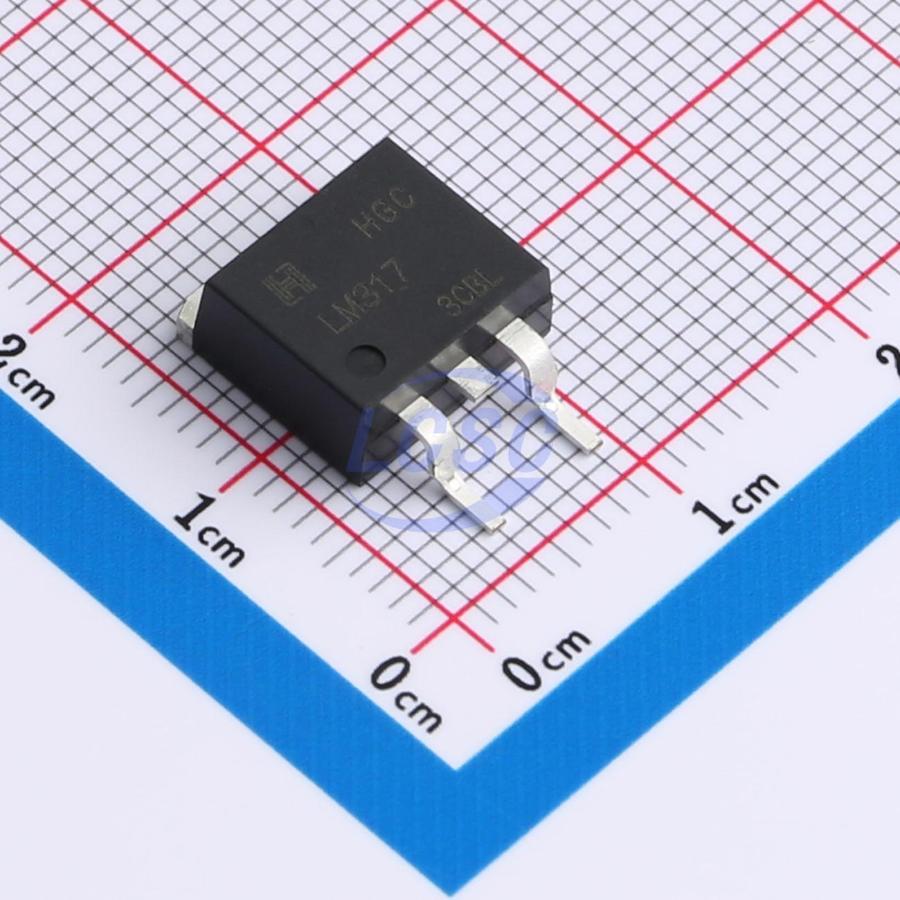

LM317D2TRG
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-263-2
TO-263-2ROHS CompliantActive
Three-terminal adjustable output positive voltage regulator
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM317D2TRG
- Store part #
- C19723797
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,955 in stock
#C19723797
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.29 | ₹171.45 |
| 50+ | ₹26.94 | ₹1,347.00 |
| 150+ | ₹23.77 | ₹3,565.50 |
| 500+ | ₹19.83 | ₹9,915.00 |
| 2,500+ | ₹18.09 | ₹45,225.00 |
| 5,000+ | ₹17.03 | ₹85,150.00 |
5 × ₹34.29
₹171.45
excl. GST
₹202.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 500 per reel
LM317D2TRG
₹171.45 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+70℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.492 g
Overview
LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying over 1.5A across an output voltage range of 1.2V to 37V. This regulator is extremely easy to use, requiring only two external resistors to set the output voltage. It also features internal current limiting, thermal shutdown, and safe operating area compensation, making it essentially immune to fuse burnout.
Applications
- Local regulation
- On-card regulation
- Precision current regulator
- Output voltage regulator
Key features
- Adjustable output voltage down to 1.2V
- 1.5A maximum output current
- Output short-circuit protection
- Overcurrent and overtemperature protection
- Pass transistor safe operating area protection
- Standard 3-terminal transistor package
