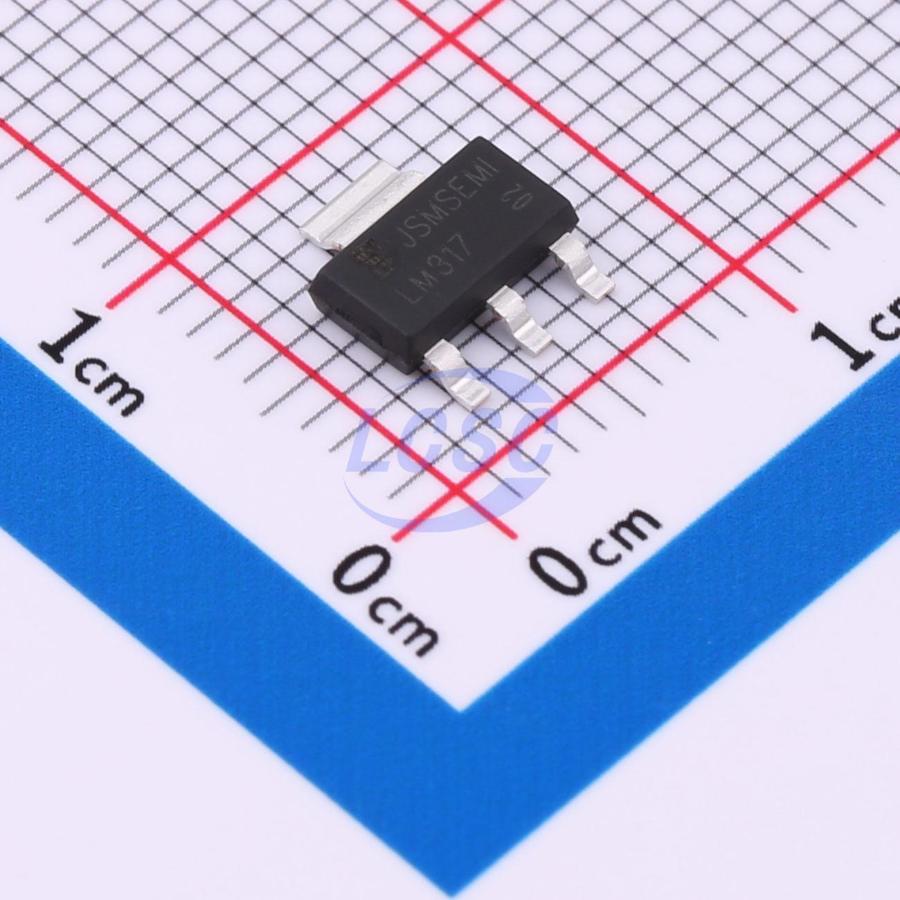

LM317EMPX/NOPB-JSM
1.25V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
1A Adjustable Voltage Regulator
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM317EMPX/NOPB-JSM
- Store part #
- C22447115
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,340 in stock
#C22447115
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.25 | ₹86.25 |
| 50+ | ₹13.71 | ₹685.50 |
| 150+ | ₹11.93 | ₹1,789.50 |
| 500+ | ₹10.60 | ₹5,300.00 |
| 2,500+ | ₹9.54 | ₹23,850.00 |
| 5,000+ | ₹9.01 | ₹45,050.00 |
5 × ₹17.25
₹86.25
excl. GST
₹101.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317EMPX/NOPB-JSM
₹86.25 for 5 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 37V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.256 g
Overview
The LM317EMPX/NOPB-JSM is an adjustable 3-terminal positive voltage regulator, designed to supply 1A of output current with voltage adjustable from 1.25V ~ 37V
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD Player
- Network Interface Card/Switch
- Telecom Equipment
- Printer and other Peripheral Equipment
Key features
- Typical 1% Output Voltage Tolerance
- Output voltage adjustable from 1.25V ~ 37V
- Output current in excess of 1A
- Internal short circuit protection
- Internal over temperature protection
- Output transistor safe area compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317G-AA3-R-JSM#C22447113JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 1,660 | ₹15.12 · 1,660 in stock | View |
 | LM317DCYR-JSM#C22447114JSMSEMI · SOT-223 | JSMSEMI | SOT-223 | 3,165 | ₹15.27 · 3,165 in stock | View |
