XBLWDatasheet (PDF)

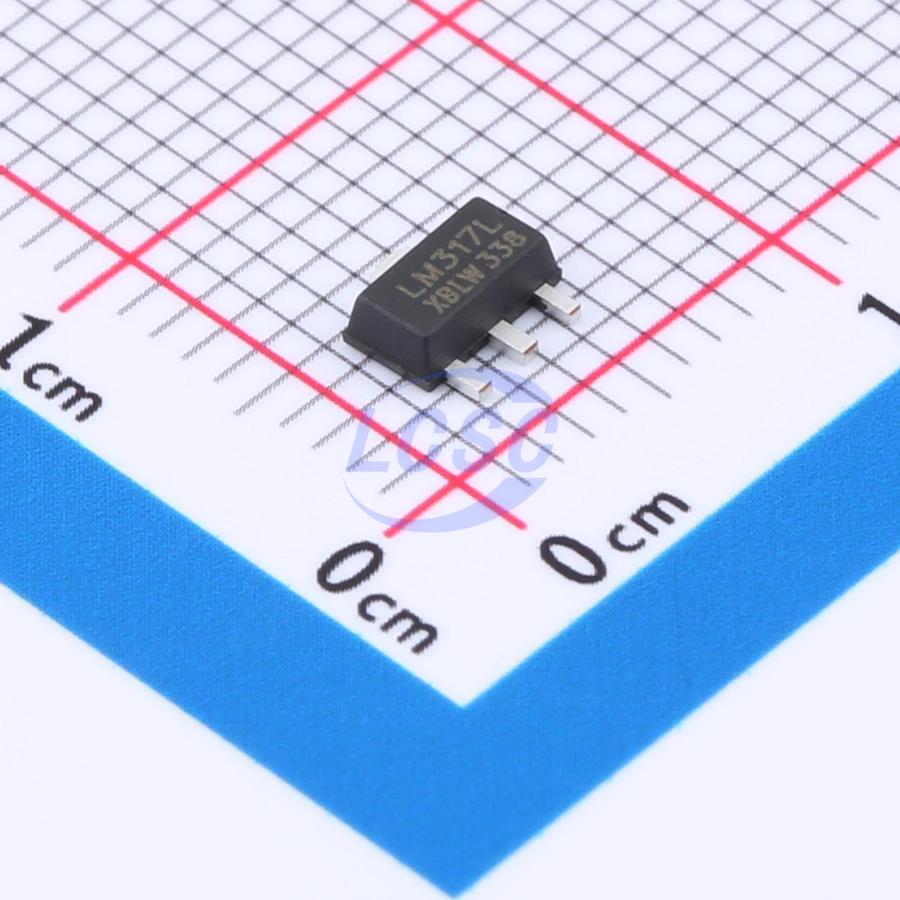

LM317LTDTR(XBLW)
1.25V~37V Positive Adjustable SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
100 mA Adjustable Voltage Regulators
- Manufacturer
- XBLW
- Manufacturer part #
- LM317LTDTR(XBLW)
- Store part #
- C19267470
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,795 in stock
#C19267470
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.78 | ₹73.90 |
| 50+ | ₹11.64 | ₹582.00 |
| 150+ | ₹10.08 | ₹1,512.00 |
| 500+ | ₹8.90 | ₹4,450.00 |
| 2,500+ | ₹7.96 | ₹19,900.00 |
| 4,000+ | ₹7.50 | ₹30,000.00 |
5 × ₹14.78
₹73.90
excl. GST
₹87.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM317LTDTR(XBLW)
₹73.90 for 5 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 40V
- Features
- Short Circuit Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
Overview
The LM317L is an adjustable 3-terminal positive voltage regulator, designed to supply 100 mA of output current with voltage adjustable from 1.25 V ~ 37 V. The LM317L serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317L can be used as a precision current regulator.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD Player
- Network Interface Card/Switch
- Telecom Equipment
- Printer and other Peripheral Equipment
Key features
- Typical 1% Output Voltage Tolerance
- Output Voltage Adjustable from 1.25 V ~ 37 V
- Output Current in Excess of 100 mA
- Internal Short Circuit Protection
- Internal Over Temperature Protection
- Output Transistor Safe Area Compensation
- Packaging information: TO - 92/SOT - 89 - 3/SOP - 8
