STDatasheet (PDF)

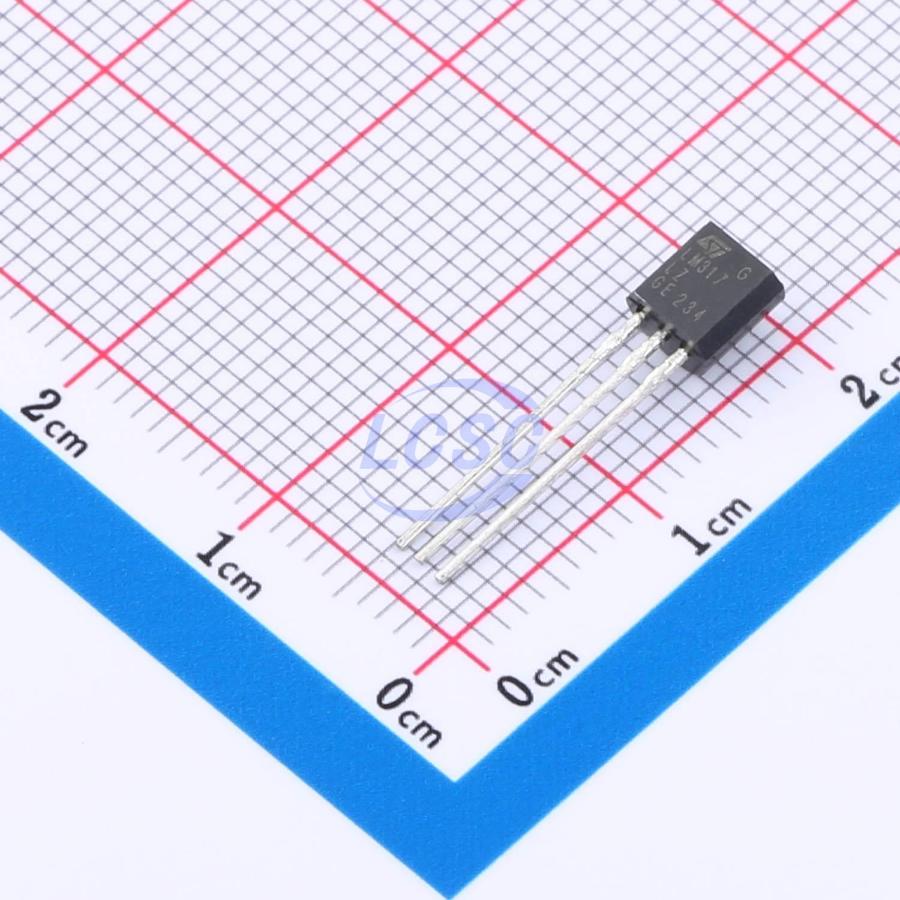

LM317LZ
1.2V~37V Positive Adjustable TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
Low Current 1.2 to 37 V Adjustable Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM317LZ
- Store part #
- C5267874
- Package / case
- TO-92-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
795 in stock
#C5267874
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.51 | ₹157.55 |
| 50+ | ₹23.77 | ₹1,188.50 |
| 150+ | ₹20.47 | ₹3,070.50 |
| 500+ | ₹16.33 | ₹8,165.00 |
| 2,500+ | ₹14.49 | ₹36,225.00 |
| 5,000+ | ₹13.38 | ₹66,900.00 |
5 × ₹31.51
₹157.55
excl. GST
₹185.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per box
LM317LZ
₹157.55 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Output Current
- 100mA
- Output Type
- Adjustable
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The LM217L/LM317L are monolithic integrated circuits in SO-8 and TO-92 packages intended for use as positive adjustable voltage regulators. They are designed to supply up to 100 mA of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Outuput voltage range: 1.2 to 37 V
- Output current up to 100 mA
- Line regulation typ. 0.01%
- Load regulation typ. 0.1%
- Thermal overload protection
- Short-circuit protection
- Output transition safe area compensation
- Floating operation for high voltage applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317LZ-TR#C140389ST · TO-92-2.54mm | ST | TO-92-2.54mm | 9,365 | ₹36.04 · 9,365 in stock | View |
