lingxingic

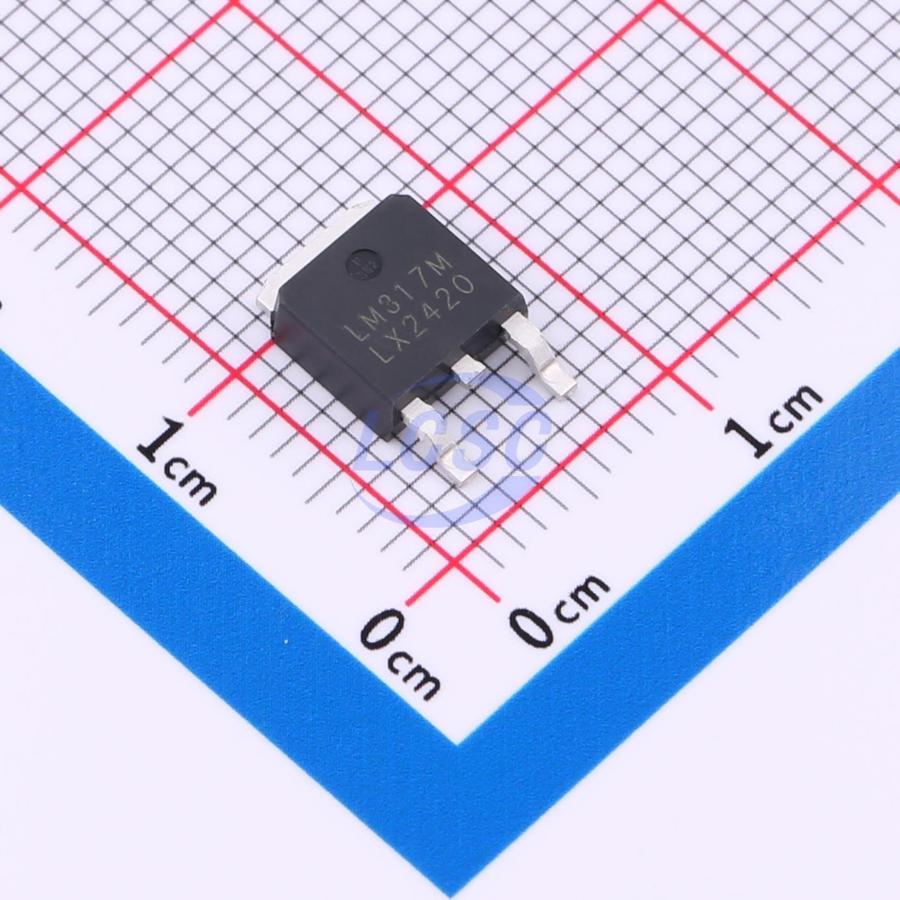

LM317M(LX)

Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5A TO-252

TO-252RoHSActive

1.5A Low Dropout Adjustable Voltage Regulator

Manufacturer: lingxingic
Manufacturer part #: LM317M(LX)
Store part #: C26159245
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,390 in stock

#C26159245

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹20.07	₹100.35
50+	₹15.76	₹788.00
150+	₹13.92	₹2,088.00
500+	₹11.62	₹5,810.00
2,500+	₹10.58	₹26,450.00
5,000+	₹9.98	₹49,900.00

Quantity (min 5, multiples of 5)

5 × ₹20.07

₹100.35

excl. GST

₹118.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM317M(LX)

₹100.35 for 5 + GST

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 1.5A
Features: Short Circuit Protection;Thermal shutdown
Output Type: Adjustable

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.484 g

Overview

The LM317 is a monolithic three-terminal adjustable voltage regulator IC, usable as a positive supply voltage regulator. It is designed to deliver load currents exceeding 1.5A, with an adjustable output voltage ranging from 1.2V to 37V. The output voltage can be set via a resistive voltage divider formed by two external resistors, making it highly convenient to use. Furthermore, its line regulation and load regulation performance surpasses that of most fixed-voltage regulator counterparts.
