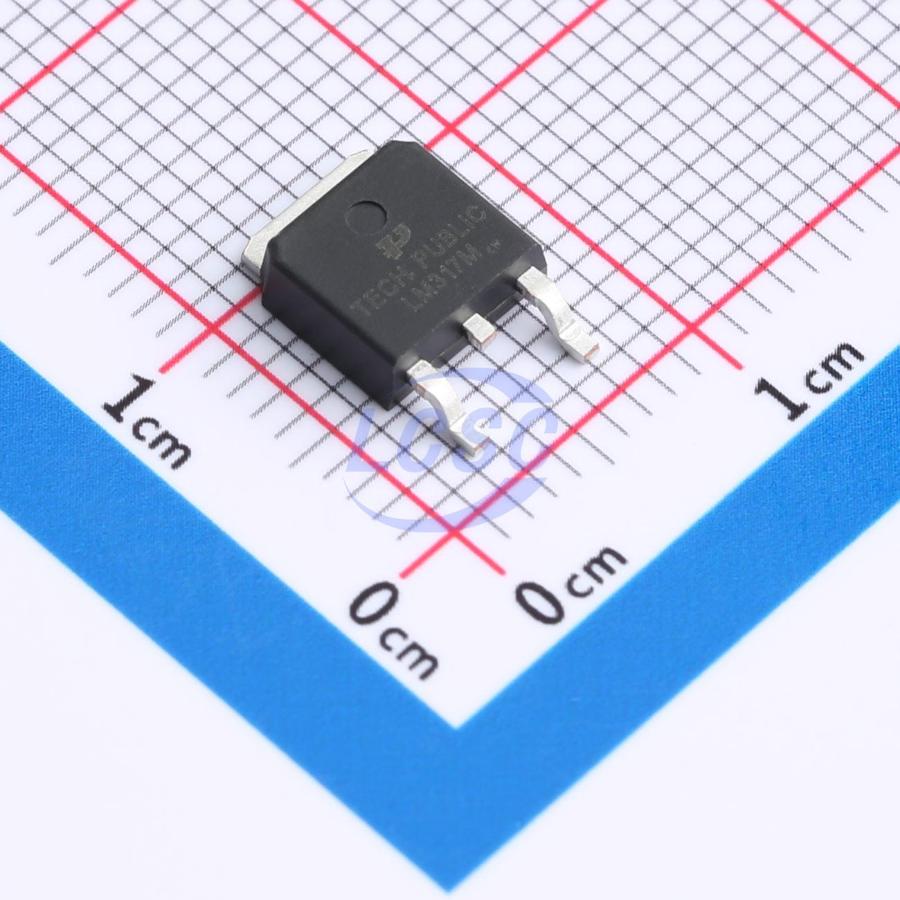

LM317MDT-TP
Linear Voltage Regulator IC Positive Adjustable 1.5A 300mA TO-252-3
TO-252-3RoHSActive
1.5A, ADJUSTABLE OUTPUT, NEGATIVE VOLTAGE REGULATOR
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM317MDT-TP
- Store part #
- C42379235
- Package / case
- TO-252-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,280 in stock
#C42379235
Stock & price checked 41 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.55 | ₹102.75 |
| 50+ | ₹16.14 | ₹807.00 |
| 150+ | ₹14.25 | ₹2,137.50 |
| 500+ | ₹11.89 | ₹5,945.00 |
| 2,500+ | ₹10.84 | ₹27,100.00 |
| 5,000+ | ₹10.20 | ₹51,000.00 |
5 × ₹20.55
₹102.75
excl. GST
₹121.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317MDT-TP
₹102.75 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.46 g
Overview
Applications
- HVAC systems
- Switched-mode power supply post-regulation
- Test and measurement equipment
- Industrial power supplies
Key features
- Output voltage adjustable from 1.2V to 37V
- Output current up to 1.5A
- Built-in thermal overload protection
- Built-in thermal overload protection
- Output transistor safe operating area compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317AG-TP#C42379184TECH PUBLIC · TO-252-3 | TECH PUBLIC | TO-252-3 | 1,335 | ₹21.83 · 1,335 in stock | View |
 | LM317MDTRKG-TP#C42379393TECH PUBLIC · TO-252-3 | TECH PUBLIC | TO-252-3 | 1,745 | ₹19.86 · 1,745 in stock | View |
 | LM317K-TP#C42379394TECH PUBLIC · TO-252-3 | TECH PUBLIC | TO-252-3 | 1,725 | ₹20.55 · 1,725 in stock | View |
