XBLWDatasheet (PDF)

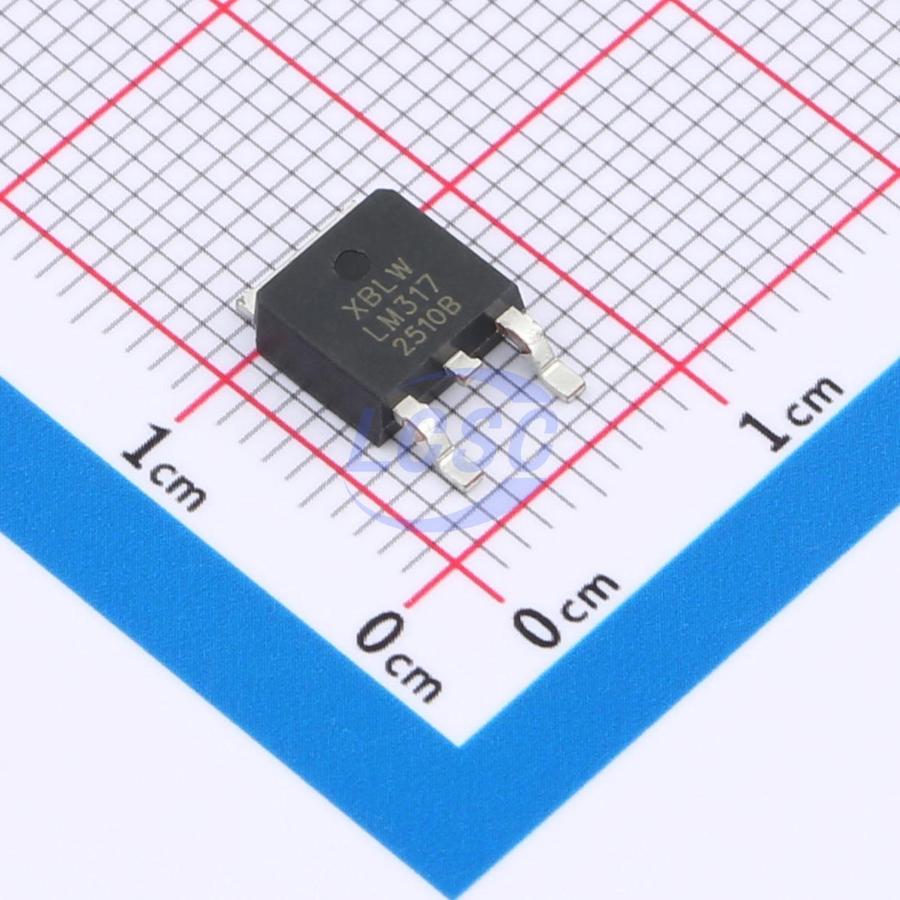

LM317MDTR(XBLW)
1.2V~37V Positive Adjustable TO-252-2L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2LROHS CompliantActive
1.5A Adjustable Voltage Regulator
- Manufacturer
- XBLW
- Manufacturer part #
- LM317MDTR(XBLW)
- Store part #
- C47021218
- Package / case
- TO-252-2L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,100 in stock
#C47021218
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.15 | ₹80.75 |
| 50+ | ₹12.83 | ₹641.50 |
| 150+ | ₹11.17 | ₹1,675.50 |
| 500+ | ₹9.92 | ₹4,960.00 |
| 2,500+ | ₹8.93 | ₹22,325.00 |
| 5,000+ | ₹8.43 | ₹42,150.00 |
5 × ₹16.15
₹80.75
excl. GST
₹95.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317MDTR(XBLW)
₹80.75 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃@(Ta)
- Output Configuration
- Positive
- Output Current
- 1.5A
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.456 g
Overview
The LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD Player
- Network Interface Card/Switch
- Telecom Equipment
- Printer and other Peripheral Equipment
Key features
- Typical 1% Output Voltage Tolerance
- Output voltage adjustable from 1.25V ~37V
- Output current in excess of 1.5A
- Internal short circuit protection
- Internal over temperature protection
- Output transistor safe area compensation
