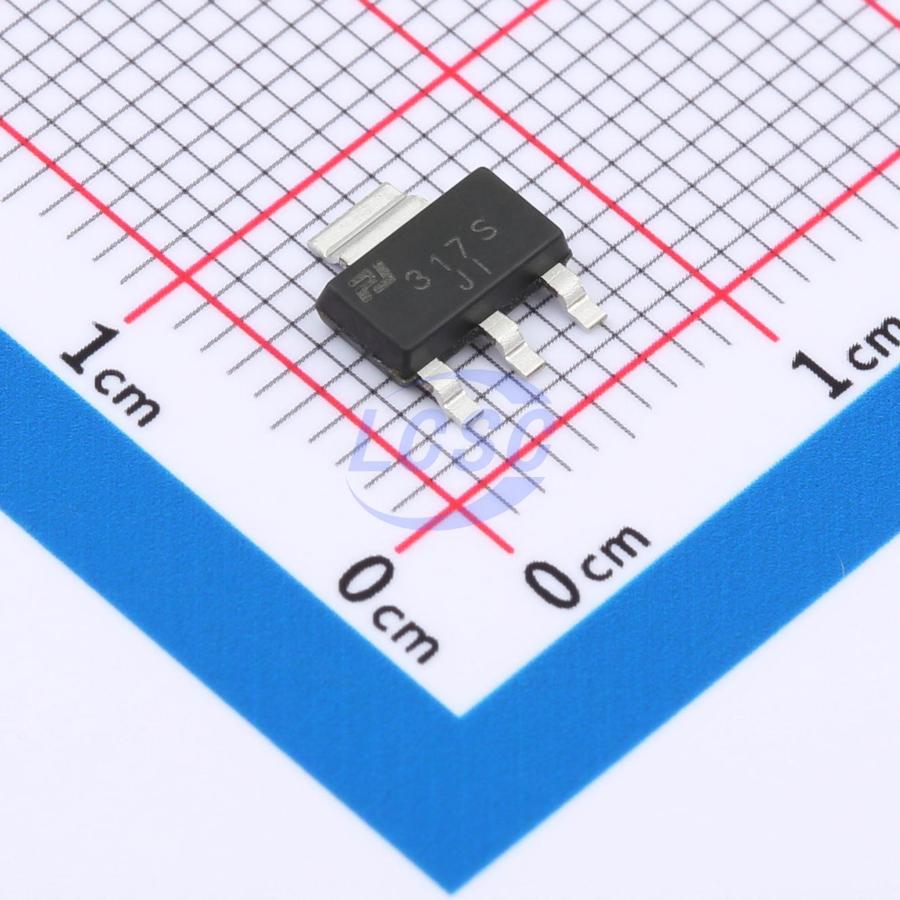

LM317SST
1.2V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-223RoHSActive
3-Terminal Adjustable Voltage Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- LM317SST
- Store part #
- C23376664
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C23376664
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.15 | ₹85.75 |
| 50+ | ₹13.56 | ₹678.00 |
| 150+ | ₹11.76 | ₹1,764.00 |
| 500+ | ₹10.41 | ₹5,205.00 |
| 2,500+ | ₹9.34 | ₹23,350.00 |
| 4,000+ | ₹8.80 | ₹35,200.00 |
5 × ₹17.15
₹85.75
excl. GST
₹101.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LM317SST
₹85.75 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
The LM317S is an adjustable 3-terminal positive-voltage regulator capable of supplying 1 A over an output-voltage range of 1.2 V to 37 V. It is exceptionally easy to use and requires only two external resistors to set the output voltage. In addition, internal current limiting, thermal shutdown, and safe area compensation, making it essentially blow−out proof. The LM317S serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317S can be used as a precision current regulator.
Applications
- Electronic Points of Sale
- Medical, Health, and Fitness Applications
- Appliances and White Goods
- TV Set-Top Boxes
Key features
- Output Current in Excess of 1 A
- Output Adjustable Between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting Constant with Temperature
- Output Transistor Safe−Area Compensation
- Eliminates Stocking many Fixed Voltages
- Available Packages: SOT-223, TO-252 and SOP-8
