KTPDatasheet (PDF)

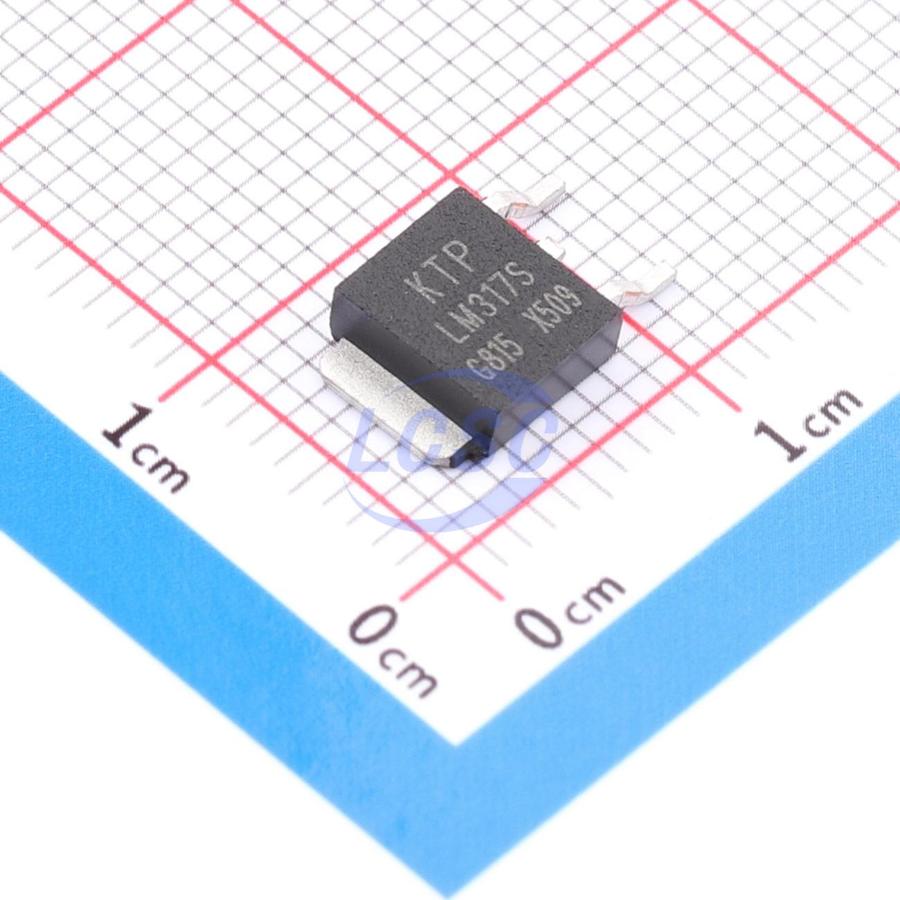

LM317TS-AW(KTP)
1.2V~37V Positive Adjustable TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
- Manufacturer
- KTP
- Manufacturer part #
- LM317TS-AW(KTP)
- Store part #
- C52034106
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C52034106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.98 | ₹124.90 |
| 50+ | ₹19.46 | ₹973.00 |
| 150+ | ₹17.09 | ₹2,563.50 |
| 500+ | ₹14.14 | ₹7,070.00 |
| 2,500+ | ₹12.83 | ₹32,075.00 |
| 5,000+ | ₹12.04 | ₹60,200.00 |
5 × ₹24.98
₹124.90
excl. GST
₹147.38 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM317TS-AW(KTP)
₹124.90 for 5 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Positive
- Output Current
- 1.5A
- Operating Voltage
- 40V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.453 g
Overview
The LM317TS is a monolithic IC three-terminal 1.5A positive adjustable voltage regulator in a TO-252 package. The device is designed to supply more than 1.5A of load current with an output voltage adjustable from 1.2V to 37V. A single resistor voltage divider sets the nominal output voltage, making the device extremely easy to use and eliminating the need to stock multiple fixed voltage regulators.
Applications
- Programmable voltage regulator
- Regulator with switching control
- Soft-start applications
- Constant current applications
Key features
- Output voltage range: 1.2V to 37V
- Output current exceeding 1.5A
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output transistor safe operating area compensation
