XBLWDatasheet (PDF)

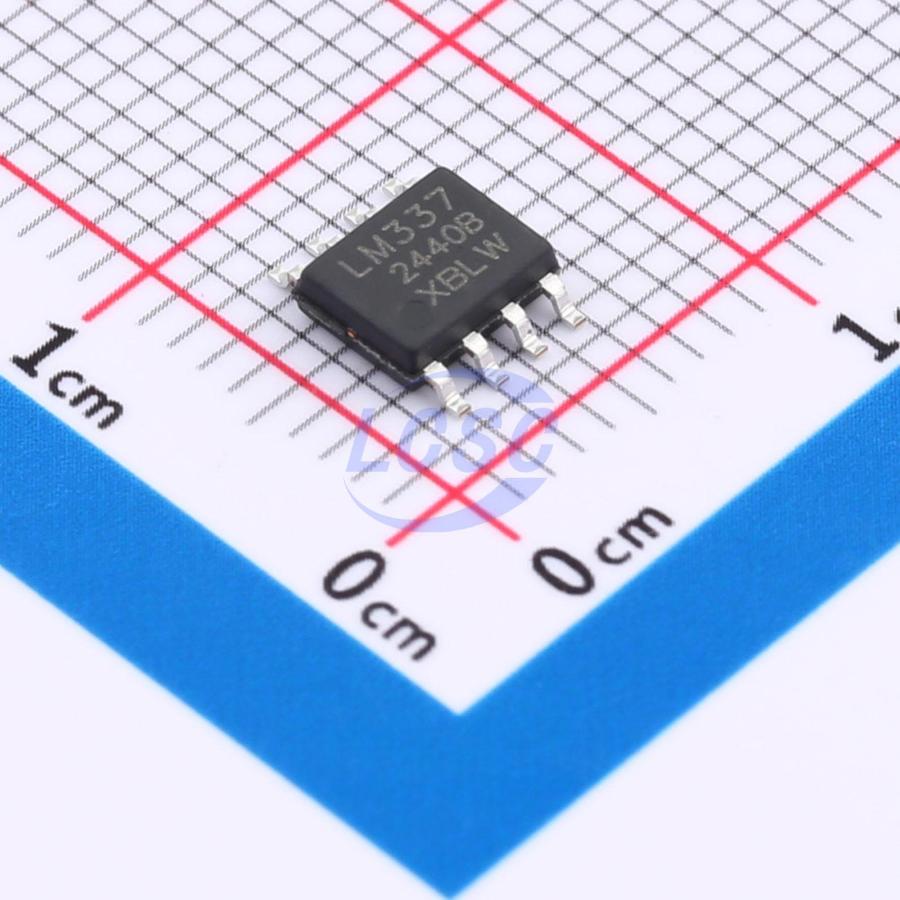

LM337EDTR(XBLW)
1.25V~37V Negative Adjustable ESOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
ESOP-8ROHS CompliantActive
Three terminal adjustable negative pressure regulator, output -1.2V~-37V, output current exceeds -1.5A
- Manufacturer
- XBLW
- Manufacturer part #
- LM337EDTR(XBLW)
- Store part #
- C42376984
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,266 in stock
#C42376984
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹48.67 | ₹48.67 |
| 10+ | ₹43.02 | ₹430.20 |
| 30+ | ₹40.64 | ₹1,219.20 |
| 100+ | ₹37.37 | ₹3,737.00 |
| 500+ | ₹36.08 | ₹18,040.00 |
| 1,000+ | ₹35.21 | ₹35,210.00 |
1 × ₹48.67
₹48.67
excl. GST
₹57.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM337EDTR(XBLW)
₹48.67 for 1 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 65uA
- Output Configuration
- Negative
- Output Current
- 1.5A
- Operating Voltage
- 40V
- Output Type
- Adjustable
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.234 g
Overview
The LM337 is adjustable 3-terminal negative voltage regulators capable of supplying 1.5 A or more currents over an output voltage range of -1.25 V to -37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM337 feature internal current limiting, thermal shutdown and safe-area compensation, making it virtually blowout-proof against overloads.
Applications
- Industrial Power Supplies
- Factory Automation Systems
- Building Automation Systems
- PLC System
- Instrumentation
- IGBT Drive Negative Gate Supplies
- Networking
- Set-Top Boxes
Key features
- 1.5A Output Current
- Line Regulation 0.01%/V (Typical)
- Load Regulation 0.3% (Typical)
- 77-dB Ripple Rejection
- 50 ppm/°C Temperature Coefficient
- Thermal Overload Protection
- Internal Short-Circuit Current Limiting Protections
