XBLWDatasheet (PDF)

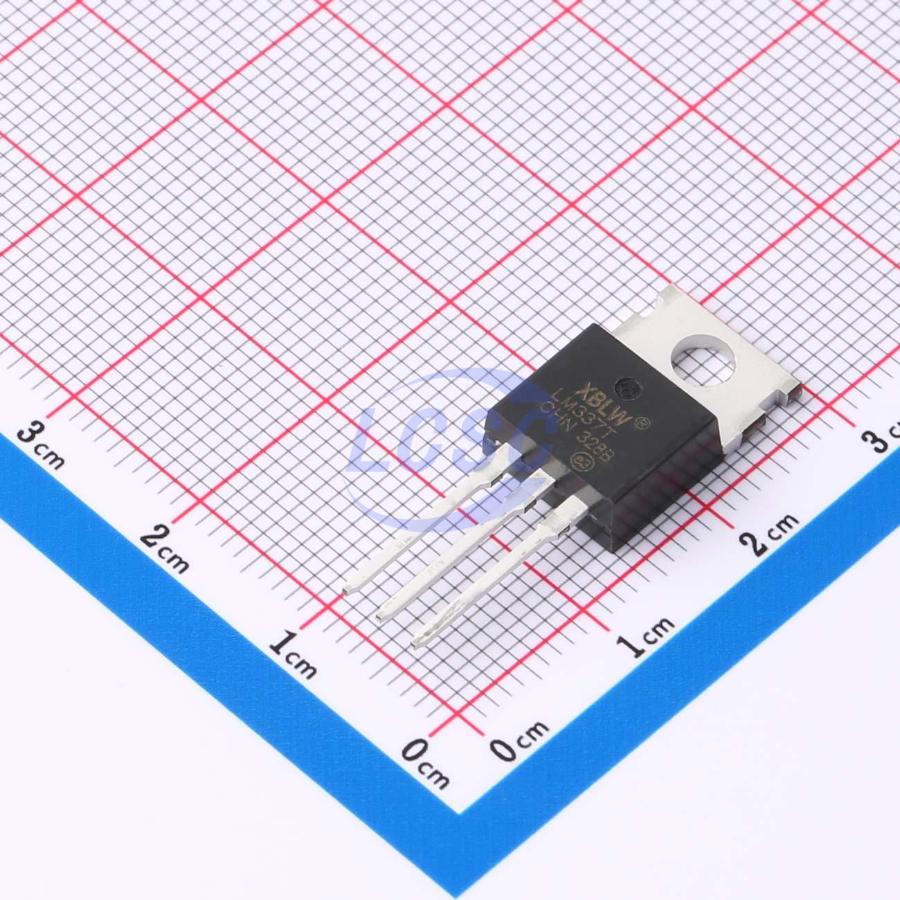

LM337T(XBLW)
1.25V~37V Negative Adjustable TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS CompliantActive
3-Terminal Adjustable Negative Regulators
- Manufacturer
- XBLW
- Manufacturer part #
- LM337T(XBLW)
- Store part #
- C18723603
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,356 in stock
#C18723603
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹85.08 | ₹85.08 |
| 10+ | ₹68.28 | ₹682.80 |
| 50+ | ₹60.08 | ₹3,004.00 |
| 100+ | ₹51.68 | ₹5,168.00 |
| 500+ | ₹46.85 | ₹23,425.00 |
| 1,000+ | ₹44.12 | ₹44,120.00 |
1 × ₹85.08
₹85.08
excl. GST
₹100.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM337T(XBLW)
₹85.08 for 1 + GST
Specifications
- Output Voltage
- 1.25V~37V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Output Current
- 1.5A
- Operating Voltage
- 40V
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.754 g
Overview
The LM337 is adjustable 3-terminal negative voltage regulators capable of supplying 1.5 A or more currents over an output voltage range of -1.25 V to -37 V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design has been optimized for excellent regulation and low thermal transients. Further, the LM337 feature internal current limiting, thermal shutdown and safe-area compensation, making it virtually blowout-proof against overloads.
Applications
- Industrial Power Supplies
- Factory Automation Systems
- Building Automation Systems
- PLC System
- Instrumentation
- IGBT Drive Negative Gate Supplies
- Networking
- Set-Top Boxes
Key features
- 1.5A Output Current
- Line Regulation 0.01%/V (Typical)
- Load Regulation 0.3% (Typical)
- 77-dB Ripple Rejection
- 50 ppm/°C Temperature Coefficient
- Thermal Overload Protection
- Internal Short-Circuit Current Limiting Protections
