GREENMICRODatasheet (PDF)

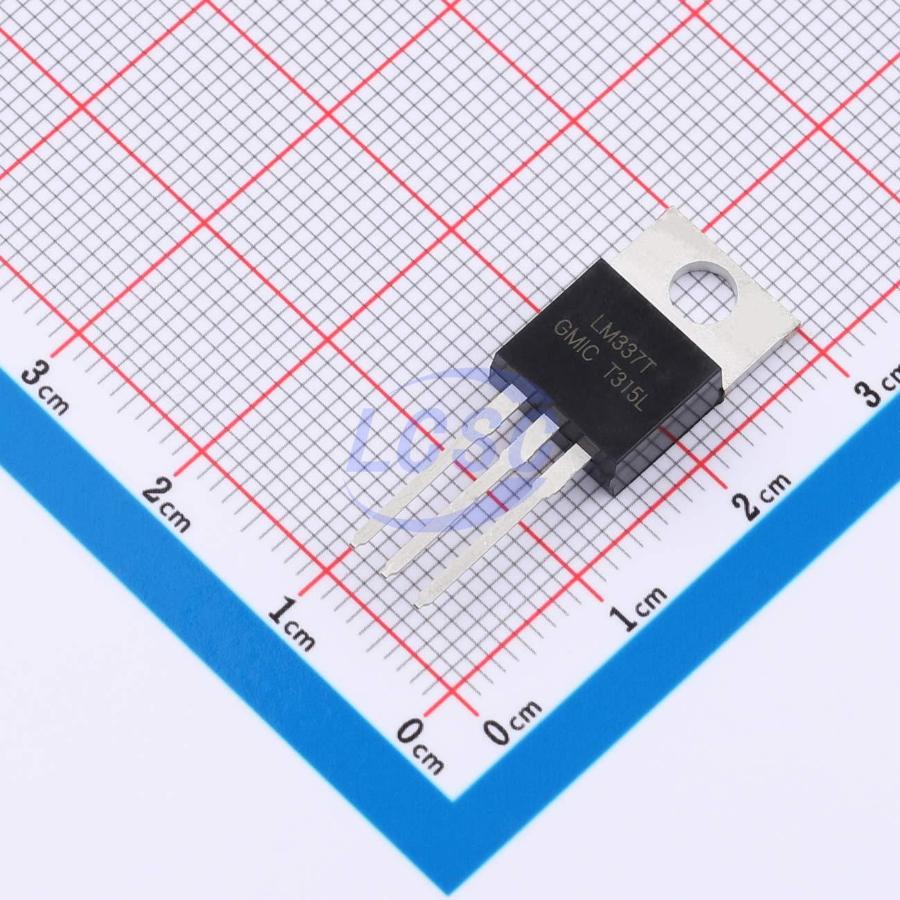

LM337TBT
1.2V~37V Negative Adjustable TO-220-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-220-3RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- LM337TBT
- Store part #
- C53261037
- Package / case
- TO-220-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,016 in stock
#C53261037
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.45 | ₹53.45 |
| 10+ | ₹42.15 | ₹421.50 |
| 50+ | ₹37.37 | ₹1,868.50 |
| 100+ | ₹31.51 | ₹3,151.00 |
| 500+ | ₹28.68 | ₹14,340.00 |
| 1,000+ | ₹27.16 | ₹27,160.00 |
1 × ₹53.45
₹53.45
excl. GST
₹63.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM337TBT
₹53.45 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -20℃~+125℃
- Output Configuration
- Negative
- Operating Voltage
- 40V
- Output Current
- 1.5A
- Features
- Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.824 g
Overview
LM337 is an adjustable three-terminal negative voltage regulator capable of supplying over -1.5A across an output voltage range of -1.2V to -37V. These regulators are extremely easy to use, requiring only two external resistors to set the output voltage and one output capacitor for frequency compensation. The circuit design is optimized for excellent regulation performance and low thermal transients. The device is suitable for a wide range of applications, including local on-board regulation, programmable output voltage regulation, and precision current regulation. The LM337 is an ideal complement to the LM337 adjustable positive voltage regulator.
Key features
- Output voltage adjustable from -1.2V to -37V
- Guaranteed 1.5A output current
- Line regulation typical value: 0.01%/V
- Excellent thermal regulation, typical value: 0.002%/W
- Superior rejection of thermal transients
- Temperature-independent current limiting
- Internal thermal overload protection
