HGSEMIDatasheet (PDF)

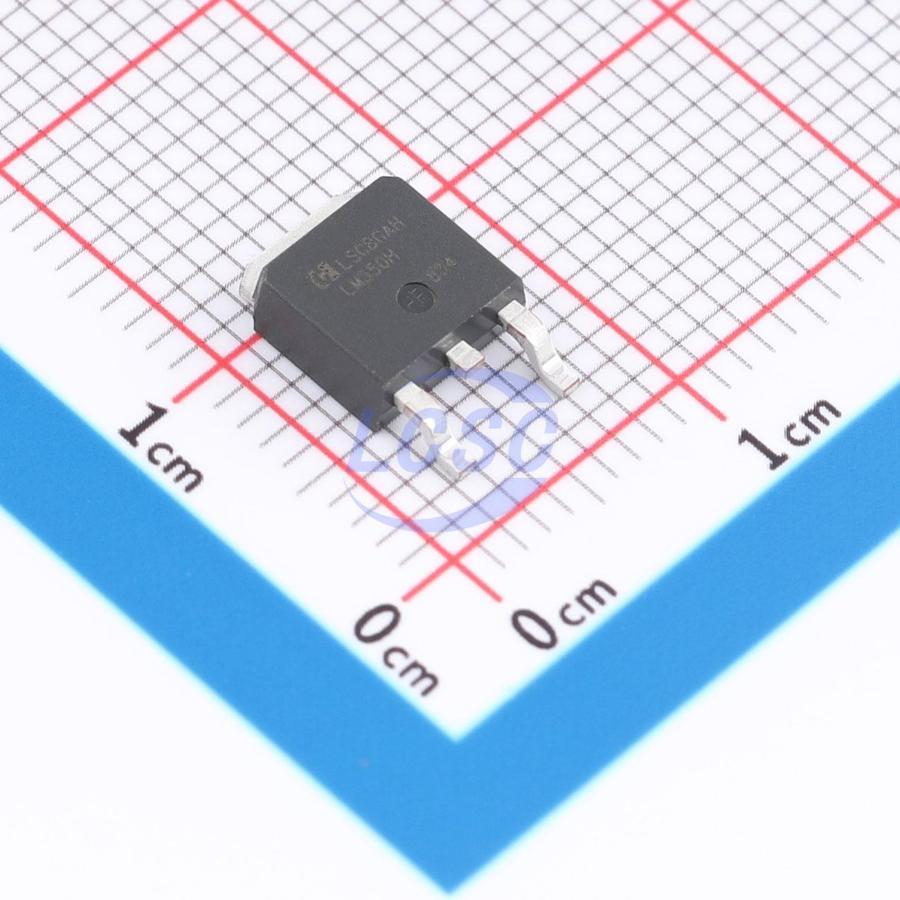

LM350HDT/TR-HG
1.2V~37V Positive Adjustable TO-252-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252-2RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM350HDT/TR-HG
- Store part #
- C54348635
- Package / case
- TO-252-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,325 in stock
#C54348635
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.13 | ₹82.13 |
| 10+ | ₹66.56 | ₹665.60 |
| 30+ | ₹58.68 | ₹1,760.40 |
| 100+ | ₹50.99 | ₹5,099.00 |
| 500+ | ₹46.29 | ₹23,145.00 |
| 1,000+ | ₹43.95 | ₹43,950.00 |
1 × ₹82.13
₹82.13
excl. GST
₹96.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM350HDT/TR-HG
₹82.13 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 3A
- Operating Voltage
- 40V
- Output Type
- Adjustable
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.595 g
Overview
The LM350H is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5A over a 1.20V to 37V output voltage range. This voltage regulator is exceptionally easy to use, requiring only two external resistors to set the output voltage. In addition, it employs internal current limiting, thermal shutdown, and safe-area compensation, making it inherently burn-out proof. The device is suitable for a wide range of applications, including local on-card regulation. It can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output terminals, as a precision current regulator. The LM350H series is available in TO220-3, TO252-2, TO263-3, and TO263-2 packages.
Applications
- Voltage regulators
- Soft-start regulators
- Current regulators
- Electronic shutdown regulators
Key features
- Typical output voltage tolerance of 1%
- Output voltage adjustable from 1.20V to 37V
- Output current exceeding 3.0A
- Internal short-circuit protection
- Internal over-temperature protection
- Output transistor safe operating area compensation
