HGSEMI

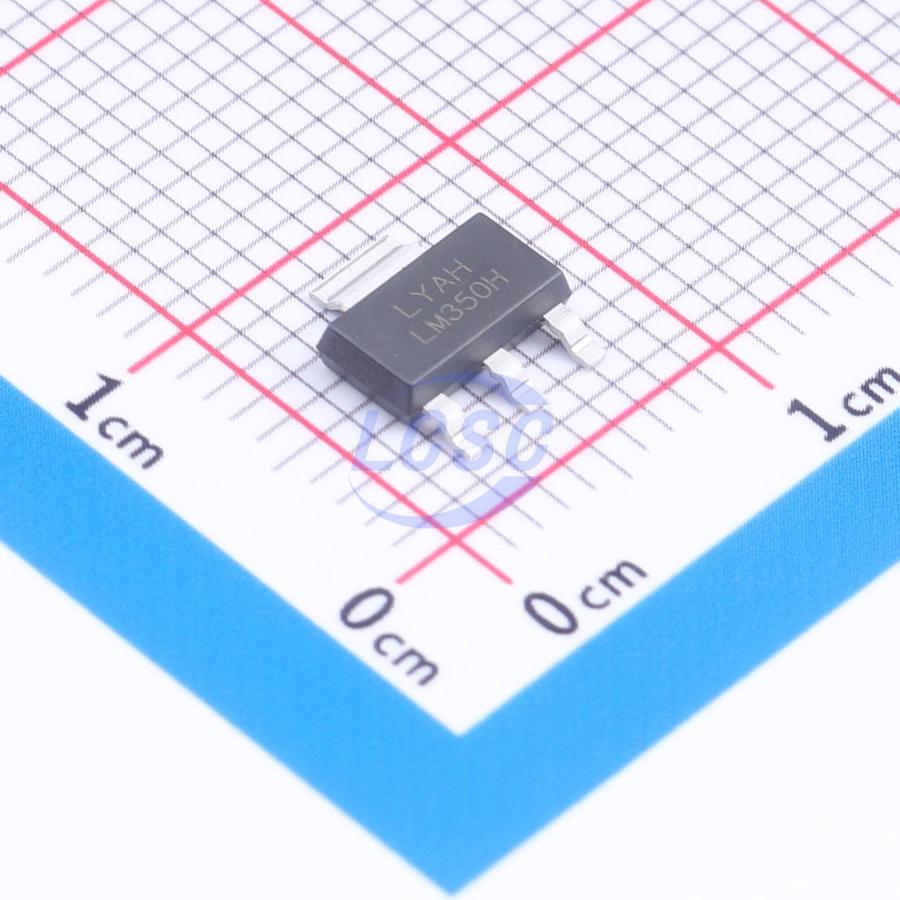

LM350HMP/TR-HG

1.2V~37V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-223RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LM350HMP/TR-HG
Store part #: C53468218
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,460 in stock

#C53468218

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹80.65	₹80.65
10+	₹65.36	₹653.60
30+	₹57.62	₹1,728.60
100+	₹50.08	₹5,008.00
500+	₹45.46	₹22,730.00
1,000+	₹43.16	₹43,160.00

Quantity (min 1)

1 × ₹80.65

₹80.65

excl. GST

₹95.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM350HMP/TR-HG

₹80.65 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V~37V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Output Configuration: Positive
Output Current: 3A
Output Type: Adjustable
Features: Short Circuit Protection;Thermal shutdown

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.392 g

Overview

The LM350H is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5A over a 1.20V to 37V output voltage range. This voltage regulator is exceptionally easy to use, requiring only two external resistors to set the output voltage. In addition, it employs internal current limiting, thermal shutdown, and safe-area compensation, making it inherently burn-out proof. The device is suitable for a wide range of applications, including local on-card regulation. It can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output terminals, as a precision current regulator. The LM350H series is available in TO220-3, TO252-2, TO263-3, and TO263-2 packages.
