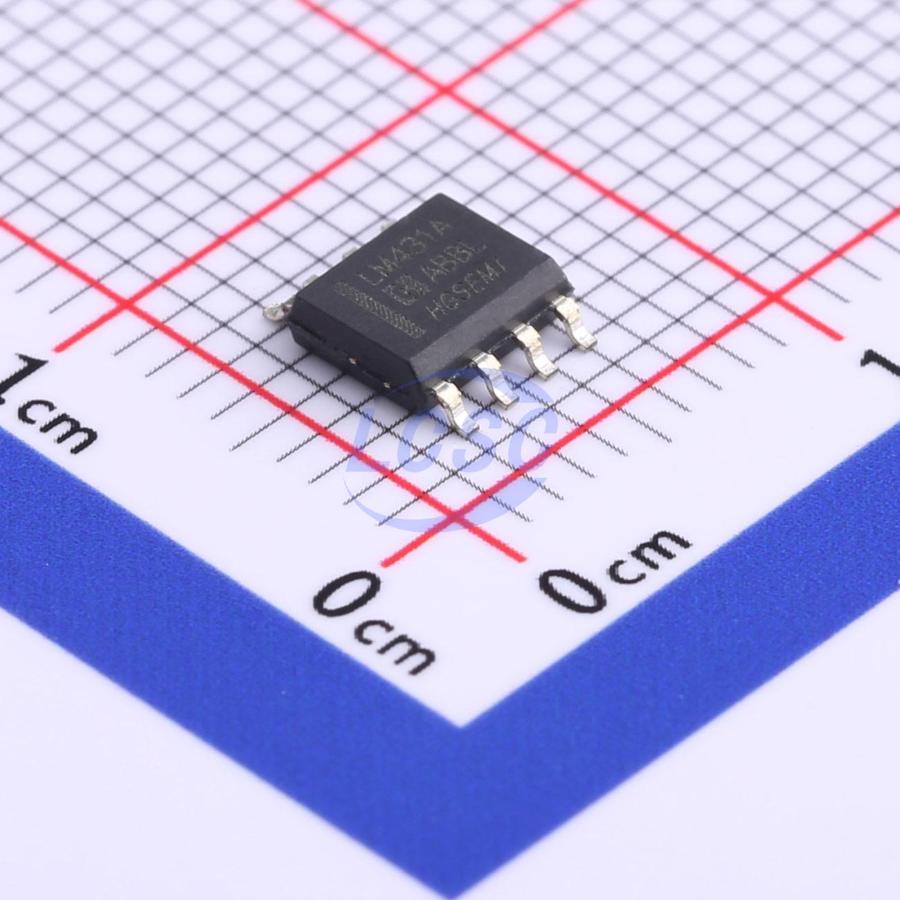

LM431AM/TR
2.5V~36V ±1% 2.5V~36V 100mA Adjustable SOP-8 Voltage Reference
SOP-8RoHSActive
Three-Terminal Adjustable Precision Reference Circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM431AM/TR
- Store part #
- C725316
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C725316
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.75 | ₹67.50 |
| 100+ | ₹5.33 | ₹533.00 |
| 300+ | ₹4.63 | ₹1,389.00 |
| 2,500+ | ₹4.10 | ₹10,250.00 |
| 5,000+ | ₹3.68 | ₹18,400.00 |
| 10,000+ | ₹3.47 | ₹34,700.00 |
10 × ₹6.75
₹67.50
excl. GST
₹79.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM431AM/TR
₹67.50 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.235 g
Overview
The LM431A is a three- terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn- on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators.
Applications
- Charger
- Voltage Adapter
- Switching Power Supply
- Graphic Card
- Precision Voltage Reference
Key features
- Programmable precise output voltage: 2.5V - 36V
- Low minimum cathode current for regulation: 150µA (Typ.)
- Low temperature deviation: 5mV (Typ.)
- Sink current capacity: 150µA - 100mA
- Low output noise
- Wide operating temperature range: -25°C to 125°C
- Stable operation guaranteed with any capacitive load
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL431AM/TR#C725318HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,400 | ₹7.38 · 2,400 in stock | View |
 | TL431AIM/TR#C5116309HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,980 | ₹7.28 · 1,980 in stock | View |
 | TL431ACM/TR#C5116308HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,100 | ₹6.73 · 1,100 in stock | View |
 | TL431BCM/TR#C7432065HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,270 | ₹7.54 · 2,270 in stock | View |
