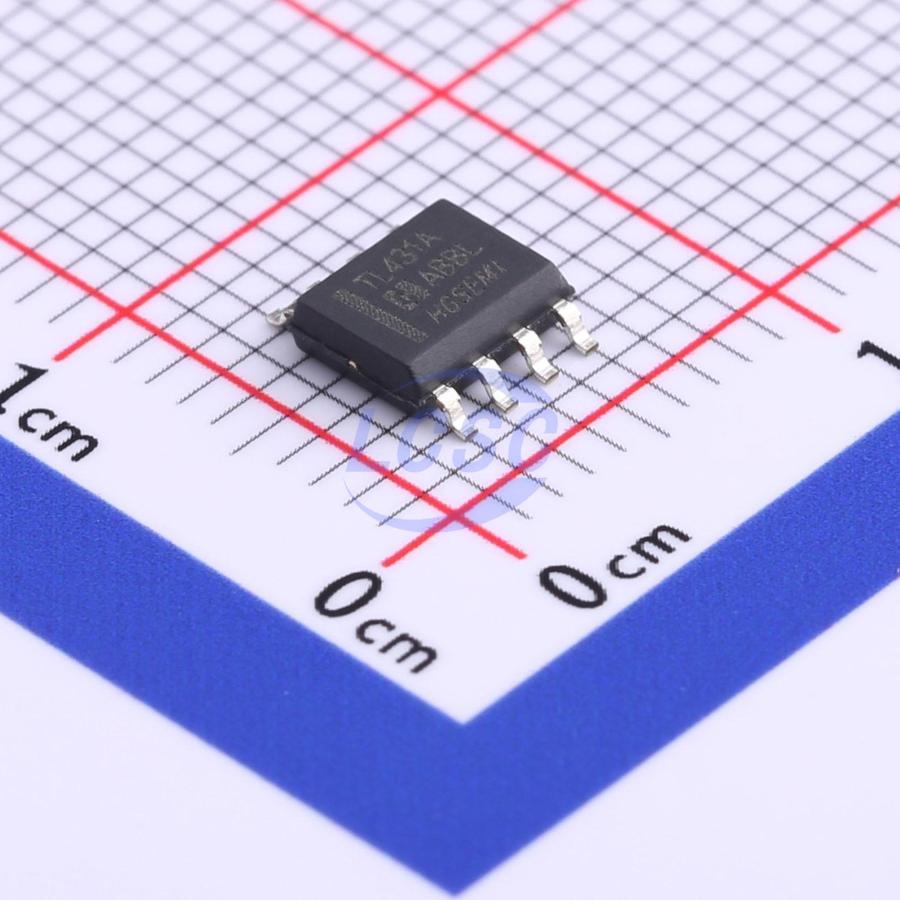

TL431AM/TR
2.5V~36V ±1% 2.5V~36V 100mA Adjustable SOP-8 Voltage Reference
SOP-8RoHSActive
Three-terminal adjustable precision reference circuit
- Manufacturer
- HGSEMI
- Manufacturer part #
- TL431AM/TR
- Store part #
- C725318
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C725318
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.93 | ₹593.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 2,500+ | ₹4.23 | ₹10,575.00 |
| 5,000+ | ₹3.78 | ₹18,900.00 |
| 10,000+ | ₹3.57 | ₹35,700.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TL431AM/TR
₹73.80 for 10 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~36V
- Minimum Cathode Current for Regulation
- 400uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -25℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.246 g
Overview
TL431 is a three-terminal adjustable, full-temperature-range stable shunt regulator. It features fast startup, low temperature drift, and low output impedance, making it an ideal replacement for Zener diodes in switching power supplies, charging circuits, and other adjustable regulator applications. The output voltage range is from Vref (2.5V) to the maximum cathode voltage (36V). Reference voltage tolerance is available in three accuracy grades: 0.5%, 1%, and 2.0% (at 25℃). Available in four packages: TO-92, SOT-23, SOP8, and SOT-89-3.
Applications
- Charging
- Voltage Adapters
- Switching Power Supplies
- Graphics Cards
- Precision Voltage References
Key features
- Programmable precise output voltage: 2.5V - 36V
- Low cathode current: 150uA (typical)
- Low temperature drift: 5mV (typical)
- Current capability: 150µA - 100mA
- Low output noise
- Wide operating temperature range: -40℃ ~ 85℃
- Stable operation guaranteed with any capacitive load
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM431AM/TR#C725316HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,040 | ₹6.75 · 2,040 in stock | View |
 | TL431AIM/TR#C5116309HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,980 | ₹7.28 · 1,980 in stock | View |
 | TL431ACM/TR#C5116308HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,100 | ₹6.73 · 1,100 in stock | View |
 | TL431BCM/TR#C7432065HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,270 | ₹7.54 · 2,270 in stock | View |
