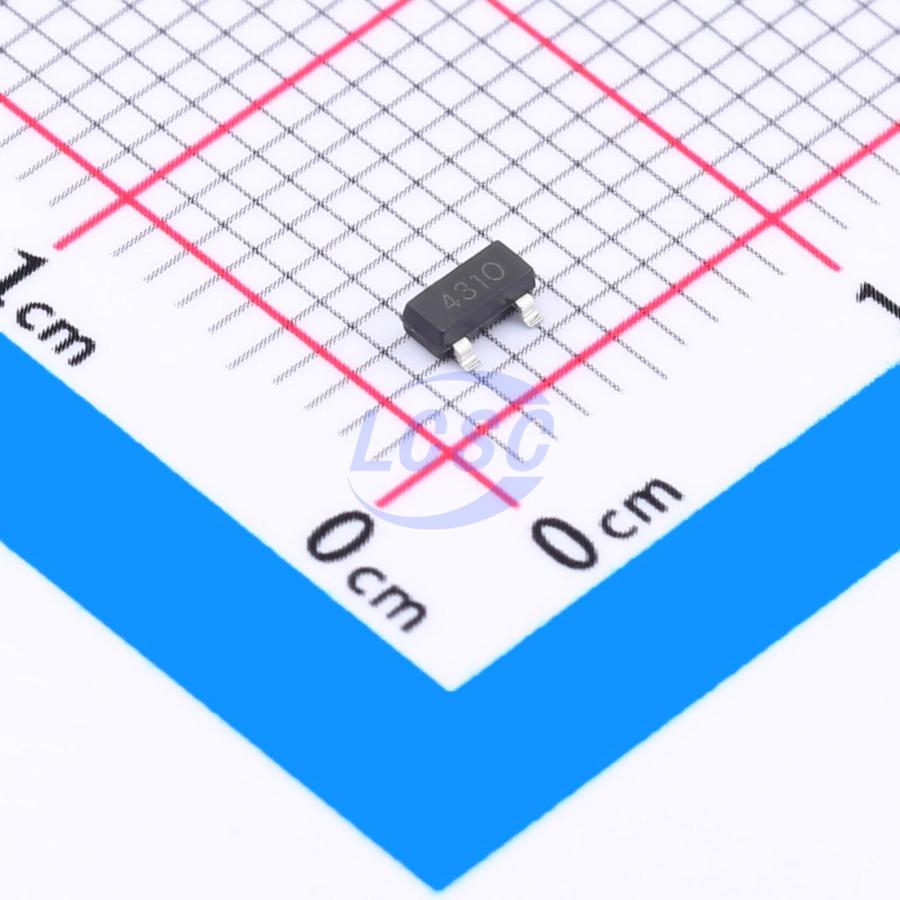

LM431ASF
2.5V ±1% 2.5V~40V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Programmable Precision Shunt Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM431ASF
- Store part #
- C5279966
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C5279966
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.84 | ₹104.20 |
| 50+ | ₹16.54 | ₹827.00 |
| 150+ | ₹14.70 | ₹2,205.00 |
| 500+ | ₹12.41 | ₹6,205.00 |
| 3,000+ | ₹11.38 | ₹34,140.00 |
| 6,000+ | ₹10.77 | ₹64,620.00 |
5 × ₹20.84
₹104.20
excl. GST
₹122.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM431ASF
₹104.20 for 5 + GST
Specifications
- Output Voltage
- 2.5V
- Tolerance
- ±1%
- Voltage - Supply
- 2.5V~40V
- Minimum Cathode Current for Regulation
- 500uA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The LM431 is a three-terminal adjustable shunt regulator with specified thermal stability over applicable temperature V_REF (2.5V) and 40V with two external resistors. This device has a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making this device excellent replacement for Zener diodes in many applications. The LM431 is characterized for operation from - 40°C to +125°C.
Applications
- Shunt Regulator
- Precision High-Current Series Regulator
- High-Current Shunt Regulator
- Crowbar Circuit
- PWM Converter With Reference Voltage Monitor
- Precision Current Limiter
Key features
- Programmable Output Voltage to 40V
- Guaranteed 0.5% Reference Voltage Tolerance
- Low (0.2Ω Typ.) Dynamic Output Impedance
- Cathode Current Range (Continuous) - 100~150 mA
- Equivalent Full Range Temperature Coefficient of 50PPM/°C
- Temperature Compensated For Operation Over Full Rate Operating Temperature Range
- Low Output Noise Voltage
- Fast Turn-on Response
- Available in SOT-23-3L Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GN431A 0.5%#C3036718GN Semic · SOT-23 | GN Semic | SOT-23 | 2,840 | ₹5.01 · 2,840 in stock | View |
 | CD431A#C20416959DOWO · SOT-23 | DOWO | SOT-23 | 3,770 | ₹6.06 · 3,770 in stock | View |
 | ME431LAXG#C487902MICRONE · SOT-23 | MICRONE | SOT-23 | 3,380 | ₹5.97 · 3,380 in stock | View |
| TS431ACX RFG#C19281066Taiwan Semiconductor · SOT-23 | Taiwan Semiconductor | SOT-23 | On request | Price on request | Quote | |
