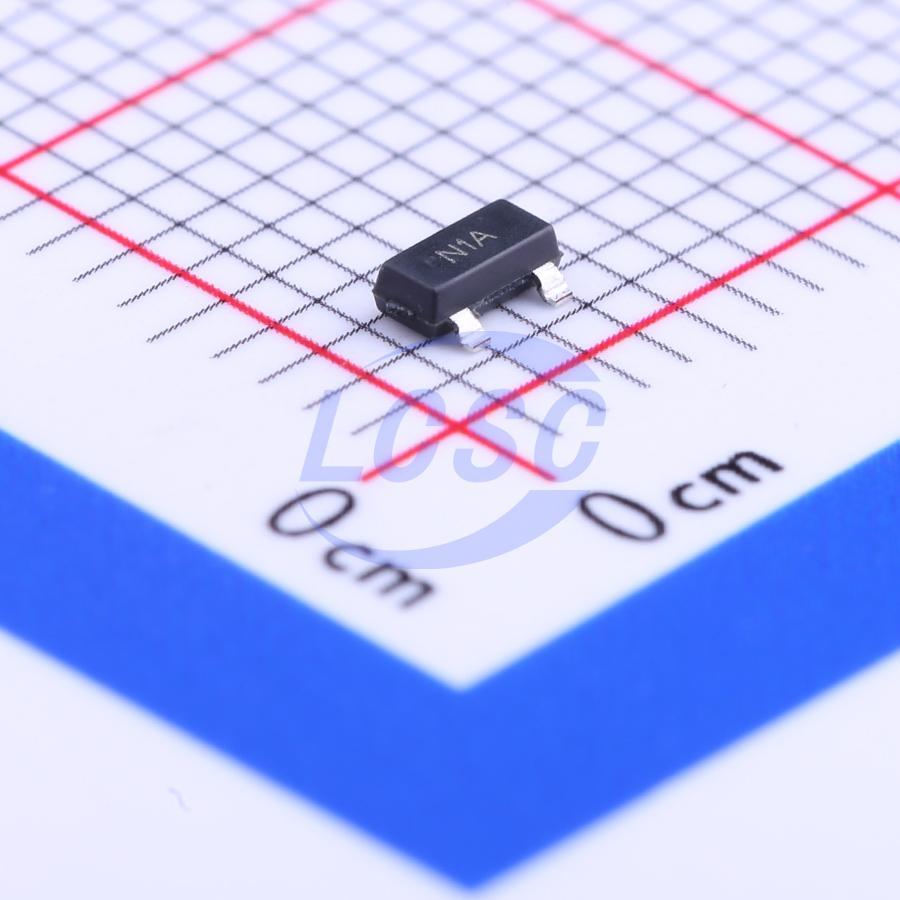

LM431CIM3X/NOPB
2.5V~36V 2.5V~37V 100mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS CompliantActive
Adjustable Precision Zener Shunt Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM431CIM3X/NOPB
- Store part #
- C132067
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,115 in stock
#C132067
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.03 | ₹78.03 |
| 10+ | ₹62.38 | ₹623.80 |
| 30+ | ₹54.56 | ₹1,636.80 |
| 100+ | ₹46.74 | ₹4,674.00 |
| 500+ | ₹41.95 | ₹20,975.00 |
| 1,000+ | ₹39.56 | ₹39,560.00 |
1 × ₹78.03
₹78.03
excl. GST
₹92.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM431CIM3X/NOPB
₹78.03 for 1 + GST
Specifications
- Output Voltage
- 2.5V~36V
- Voltage - Supply
- 2.5V~37V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+85℃
- Features
- Temperature compensation control
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The LM431 is a 3-terminal adjustable shunt regulator with ensured temperature stability over the entire temperature range of operation. The output voltage may be set at any level greater than 2.5 V (VREF) up to 36 V merely by selecting two external resistors that act as a voltage divided network. Due to the sharp turnon characteristics this device is an excellent replacement for many Zener diode applications.
Applications
- Adjustable Voltage or Current Linear and Switching Power Supplies
- Voltage Monitoring
- Current Source and Sink Circuits
- Circuits Requiring Precision References
- Zener Diode Replacements
Key features
- Average Temperature Coefficient 50 ppm/°C
- Temperature Compensated for Operation Over the Full Temperature Range
- Programmable Output Voltage
- Fast Turnon Response
- Low-Output Noise
- Low-Dynamic Output Impedance
- Available in Space-Saving SOIC-8, SOT-23, and TO-92 Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM431CIM3/NOPB#C129974TI · SOT-23 | TI | SOT-23 | 13 | ₹110.62 · 13 in stock | View |
 | TL431BIDBZR#C41283TI · SOT-23-3 | TI | SOT-23-3 | 1,92,035 | ₹10.37 · 1,92,035 in stock | View |
 | TL431BQDBZR#C190245TI · SOT-23-3 | TI | SOT-23-3 | 21,600 | ₹15.88 · 21,600 in stock | View |
 | TL431BQDBZT#C2864384TI · SOT-23-3 | TI | SOT-23-3 | 20 | ₹41.69 · 20 in stock | View |
 | TL431BQDBZRQ1#C97747TI · SOT-23-3 | TI | SOT-23-3 | 2,882 | ₹114.90 · 2,882 in stock | View |
