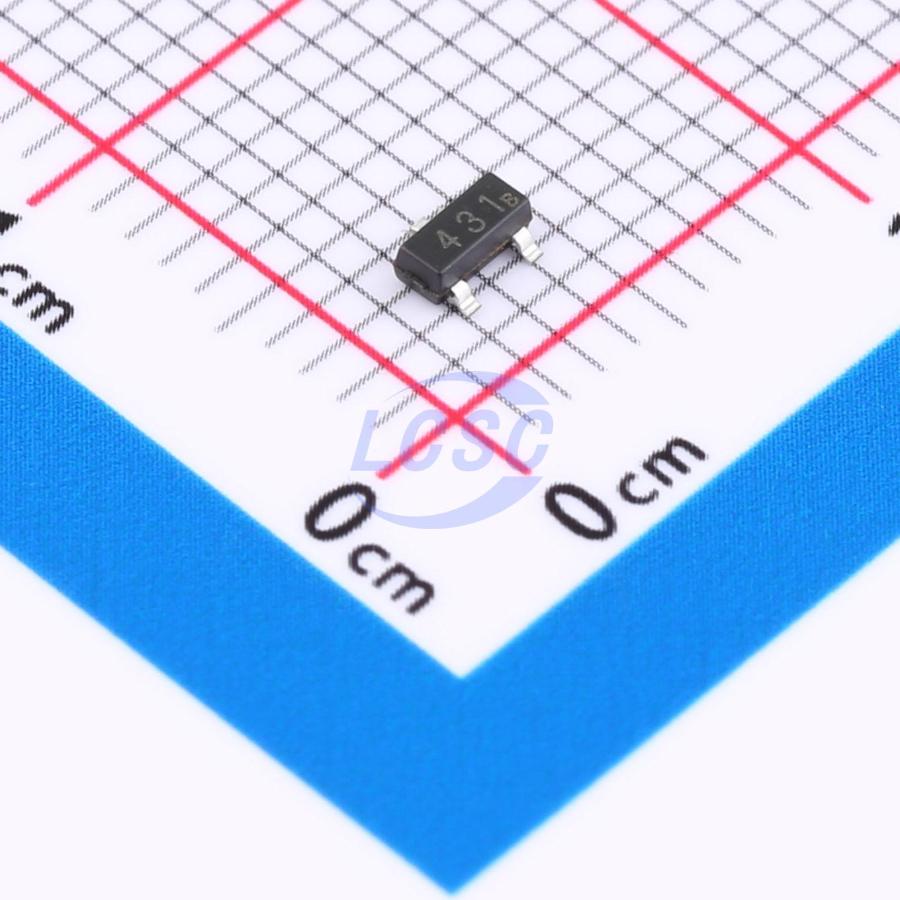

LM431SCCM3X-TP
Shunt Voltage Reference IC Adjustable 2.495V~36V ±0.5% 100mA SOT-23
SOT-23RoHSActive
Precision adjustable reference source
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM431SCCM3X-TP
- Store part #
- C48586686
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C48586686
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.82 | ₹78.20 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.32 | ₹1,596.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.18 | ₹25,080.00 |
| 9,000+ | ₹3.93 | ₹35,370.00 |
10 × ₹7.82
₹78.20
excl. GST
₹92.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM431SCCM3X-TP
₹78.20 for 10 + GST
Specifications
- Output Voltage
- 2.495V~36V
- Tolerance
- ±0.5%
- Voltage - Supply
- 2.495V~36V
- Minimum Cathode Current for Regulation
- 1mA
- Reference Type
- Parallel
- Output Current
- 100mA
- Operating Temperature
- -40℃~+125℃
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
Precision adjustable reference source. This device is a three-terminal adjustable shunt regulator that can set the output voltage to any value between Vref (approximately 2.495V) and 36V using two external resistors. These devices feature an output impedance of 0.15 Ω (typical). The active output circuit provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, including on-board voltage regulation, adjustable power supplies, and power switching.
Applications
- Adjustable voltage and current reference
- Zener diode replacement
- Voltage monitoring
- Comparator with integrated reference
- Secondary-side voltage regulation in flyback switching power supplies
Key features
- Adjustable output voltage range: 2.495V~36V
- Low dynamic output resistance: 0.15Ω (typical)
- Low temperature drift: 5mV (typical)
- Low output noise
- High capacitive load stability
- Current capacity range: 1-100 mA
- Accuracy: 0.5%
- Package: SOT23
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL432BIDBZR-TP#C42407103TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 2,700 | ₹8.20 · 2,700 in stock | View |
 | TL431AFDT-TP#C47117572TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,980 | ₹7.95 · 3,980 in stock | View |
 | TL431BFDT-TP#C47117575TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,630 | ₹7.53 · 1,630 in stock | View |
 | AS431ANTR-TP#C47117517TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,580 | ₹5.69 · 2,580 in stock | View |
 | AZ431BN-TP#C47117518TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,460 | ₹5.66 · 2,460 in stock | View |
