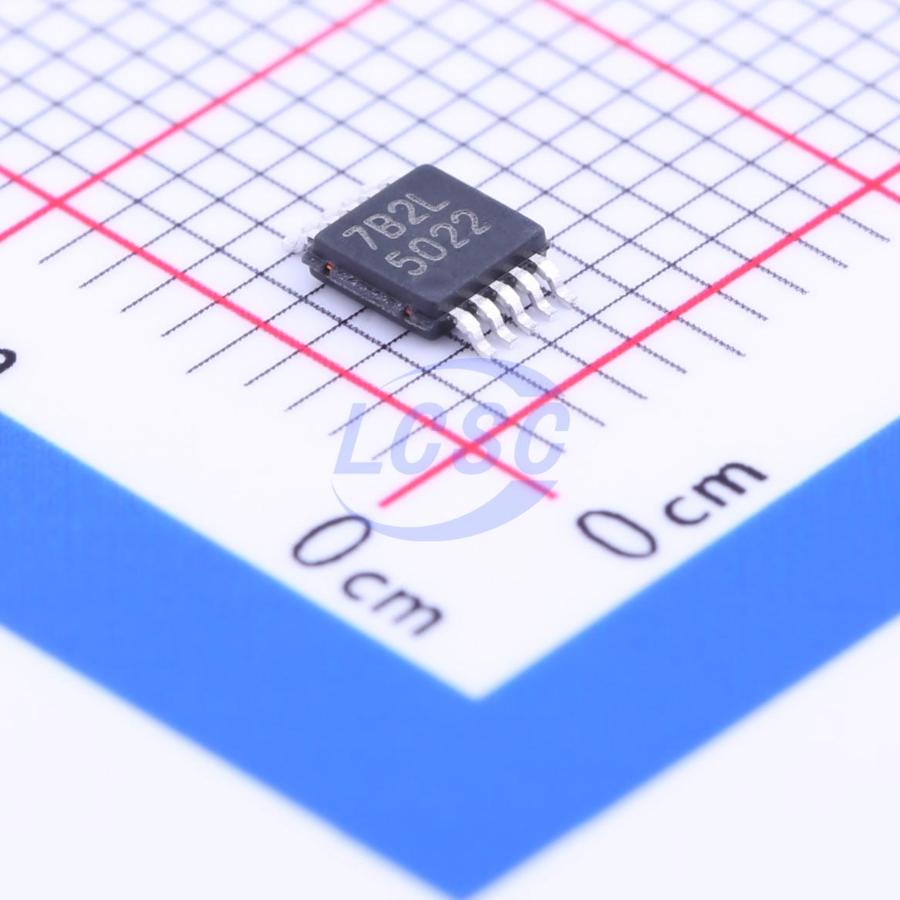

LM5022MM/NOPB

The LM5022 device is a high-voltage, low-side, N-channel MOSFET controller ideal for use in boost and SEPIC regulators. It contains all of the features required to implement single-ended primary topologies. Output voltage regulation is based on current-mode control, which eases the design of loop compensation while providing inherent input voltage feedforward. The LM5022 includes a start-up regulator that operates over a wide input range of 6 V to 60 V. The PWM controller is designed for high-speed capability including an oscillator frequency range up to 2.2 MHz and total propagation delays less than 100 ns. Additional features include an error amplifier, precision reference, line undervoltage lockout, cycle-by-cycle current limit, slope compensation, soft start, external synchronization capability, and thermal shutdown. The LM5022 is available in the 10-pin VSSOP package.

Applications

• Boost Converters
• SEPIC Converters

Key features

• Internal 60-V Start-Up Regulator
• 1-A Peak MOSFET Gate Driver
• VIN Range: 6 V to 60 V (Operates Down to 3 V After Start-Up)
• Duty Cycle Limit of 90%
• Programmable UVLO With Hysteresis
• Cycle-by-Cycle Current Limit
• External Synchronizable (AC-Coupled)
• Single Resistor Oscillator Frequency Set
• Slope Compensation
• Adjustable Soft Start
• 10-Pin VSSOP Package
