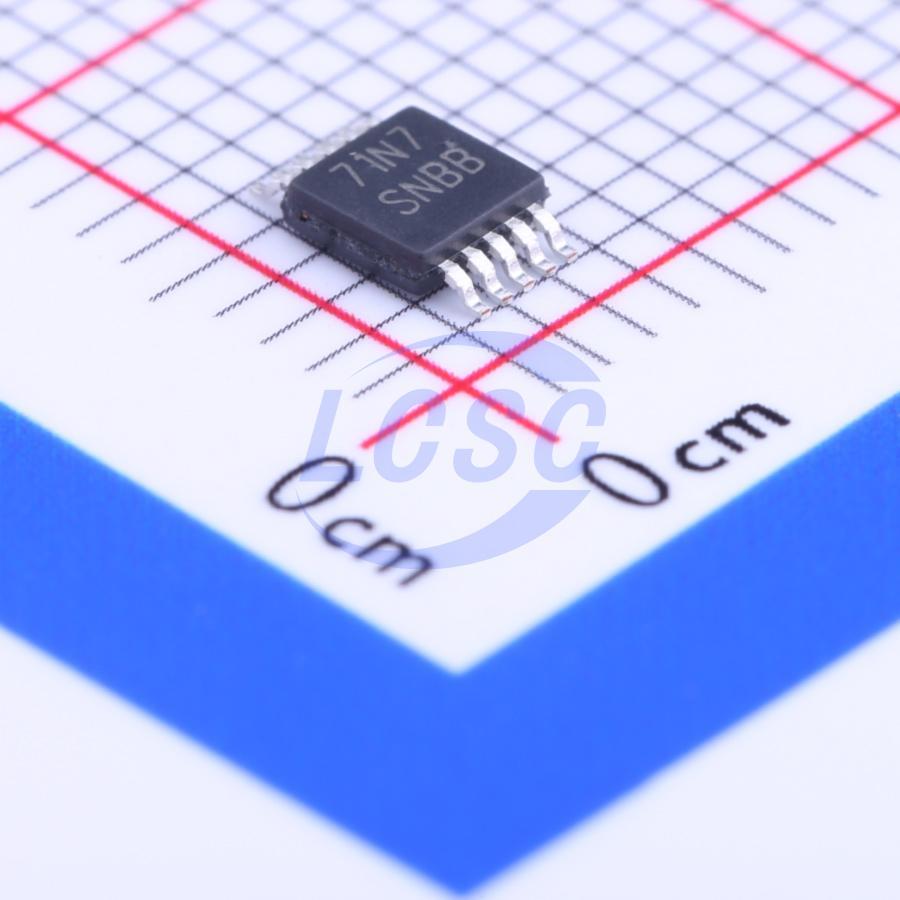

LM5069MM-2/NOPB

The LM5069 positive hot swap controller provides intelligent control of the power supply connections during insertion and removal of circuit cards from a live system backplane or other hot power sources. The LM5069 provides in-rush current control to limit system voltage droop and transients. The current limit and power dissipation in the external series pass NChannel MOSFET are programmable, ensuring operation within the Safe Operating Area (SOA). The POWER GOOD output indicates when the output voltage is within 1.25 V of the input voltage. The input undervoltage and overvoltage lockout levels and hysteresis are programmable, as well as the initial insertion delay time and fault detection time. The LM5069-1 latches off after a fault detection, while the LM5069-2 automatically restarts at a fixed duty cycle. LM5069 is available in a 10-pin VSSOP package.

Applications

• Server Backplane Systems
• Base Station Power Distribution Systems
• Solid State Circuit Breaker
• 24-V and 48-V Industrial Systems

Key features

• Wide Operating Range: 9 V to 80 V
• In-Rush Current Limit for Safe Board Insertion into Live Power Sources
• Programmable Maximum Power Dissipation in the External Pass Device
• Adjustable Current Limit
• Circuit Breaker Function for Severe Overcurrent Events
• Internal High Side Charge Pump and Gate Driver for External N-channel MOSFET
• Adjustable Undervoltage Lockout (UVLO) and Hysteresis
• Adjustable Overvoltage Lockout (OVLO) and Hysteresis
• Initial Insertion Timer Allows Ringing and Transients to Subside after System Connection
• Programmable Fault Timer Avoids Nuisance Trips
• Active High Open Drain POWER GOOD Output
• Available in Latched Fault and Automatic Restart Versions
• 10-Pin VSSOP Package
