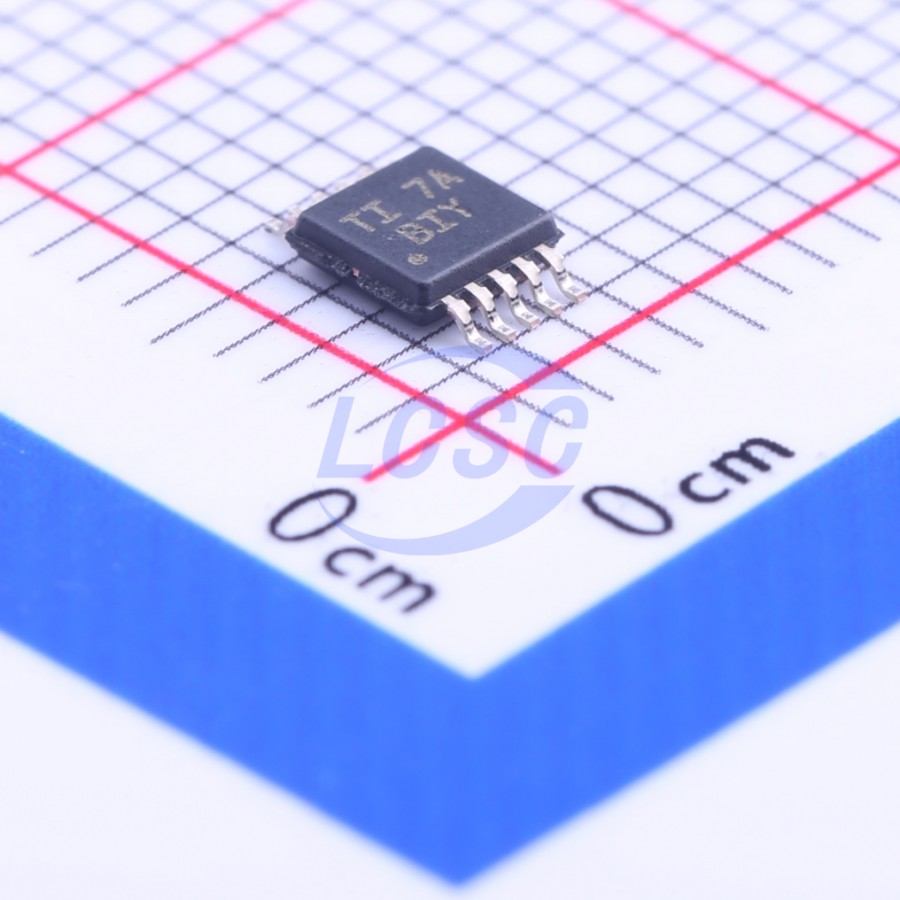

TPS2490DGSR

The TPS249x are easy-to-use, positive high voltage, 10-pin Hot Swap Power Manager devices that safely drive an external N-channel MOSFET switch. The power limit and current limit (both are adjustable and independent of each other) ensure that the external MOSFET operates inside a selected safe operating area (SOA) under the harshest operating conditions. Applications include inrush current limiting, electronic circuit breaker protection, controlled load turn-on, interfacing to down-stream DC-to-DC converters, and power feed protection. These devices are available in a small, space-saving 10-pin VSSOP package and significantly reduce the number of external devices, saving precious board space. The TPS249x is supported by application notes, an evaluation module, and a design tool.

Applications

• Server Backplanes
• Storage Area Networks (SAN)
• Medical Systems
• Plug-In Modules
• Base Stations

Key features

• Programmable Power Limiting and Current Limiting for Complete Safe Operating Area (SOA) Protection
• Wide Operating Range: 9 V to 80 V
• Latched Operation (TPS2490) and Automatic Retry (TPS2491)
• High-Side Drive for Low-RDS(on) External N-channel MOSFET
• Programmable Fault Timer to Protect the MOSFET and Eliminate Nuisance Shutdowns
• Power Good Open-Drain Output for Downstream DC/DC Coordination
• Enable Can Be Used as a Programmable Undervoltage Lockout or Logic Control
• Small, Space-Saving 10-pin VSSOP Package
• Calculator Tool Available (TPS2490/91 Design-in Calculator, SLVC033)
