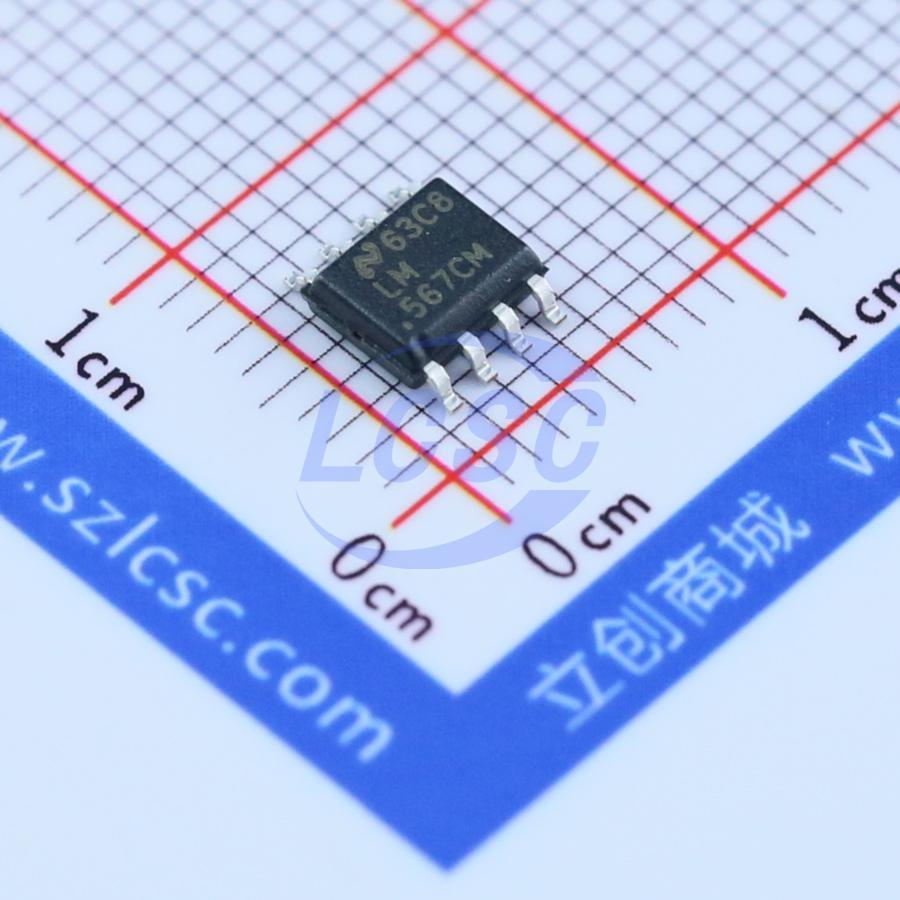

LM567CMX/NOPB
Demodulator SOIC-8 Telecom RoHS
Tone Decoder
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,020 in stock
#C18353
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.34 | ₹243.34 |
| 10+ | ₹206.19 | ₹2,061.90 |
| 30+ | ₹183.16 | ₹5,494.80 |
| 100+ | ₹149.49 | ₹14,949.00 |
| 500+ | ₹138.61 | ₹69,305.00 |
| 1,000+ | ₹134.06 | ₹1,34,060.00 |
1 × ₹243.34
₹243.34
excl. GST
₹287.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM567CMX/NOPB
₹243.34 for 1 + GST
Specifications
- Type
- Demodulator
- Operating Temperature
- -20℃~+120℃
- Features
- DTMF detection;Built-in phase-locked loop
- Current - Supply
- 8mA
- Voltage - Supply
- 4.75V~9V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The LM567 and LM567C are general purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage controlled oscillator which determines the center frequency of the decoder. External components are used to independently set center frequency, bandwidth and output delay.
Applications
- Touch Tone Decoding
- Precision Oscillator Frequency Monitoring and Control
- Wide Band FSK Demodulation
- Ultrasonic Controls
- Carrier Current Remote Controls Communications Paging Decoders
Key features
- 20 to 1 Frequency Range With an External Resistor
- Logic Compatible Output With 100-mA Current Sinking Capability
- Bandwidth Adjustable From 0 to 14%
- High Rejection of Out of Band Signals and Noise
- Immunity to False Signals
- Highly Stable Center Frequency
- Center Frequency Adjustable from 0.01 Hz to 500 kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM567CM/TR#C20613277HGSEMI · SOP-8 | HGSEMI | SOP-8 | 860 | ₹22.98 · 860 in stock | View |
 | LM567CM(XBLW)#C22451417XBLW · SOP-8 | XBLW | SOP-8 | 765 | ₹25.88 · 765 in stock | View |
 | LMC567CMX/NOPB#C129982TI · SOIC-8 | TI | SOIC-8 | 1,679 | ₹371.78 · 1,679 in stock | View |
| LMC567CM#C3678955TI · SOIC-8 | TI | SOIC-8 | On request | ₹118.37 · 0 in stock | View | |
