HGSEMI

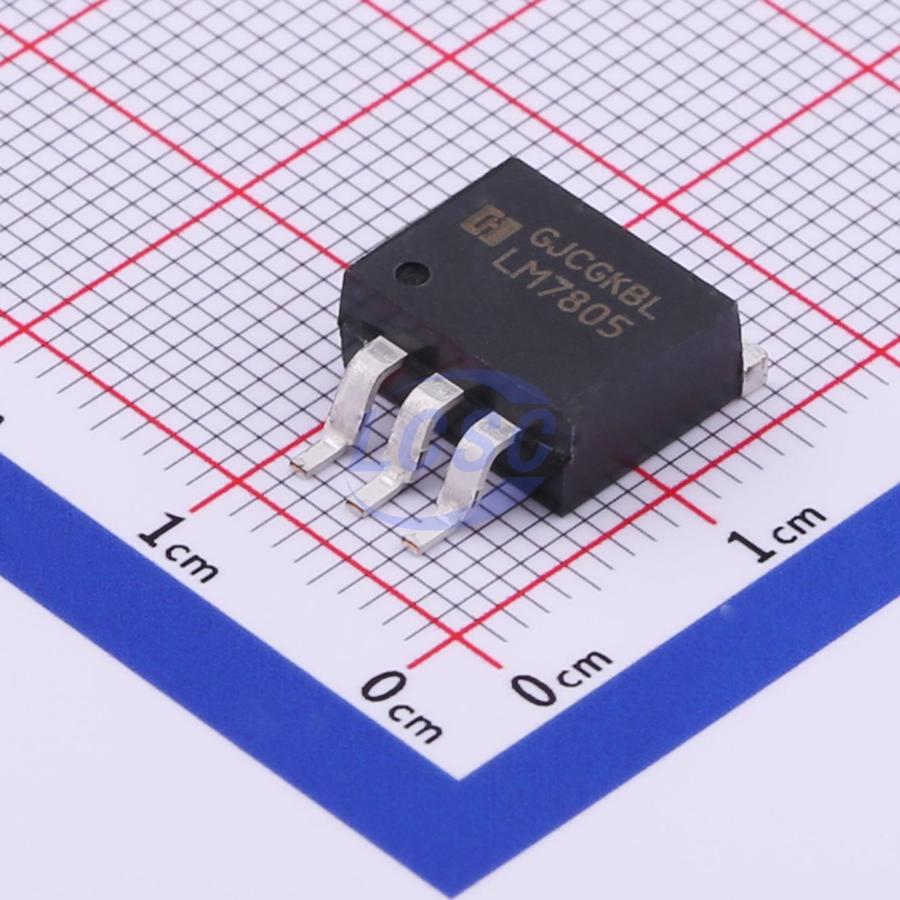

LM7805S/TR

Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A TO-263-3

TO-263-3RoHSActive

Three-terminal fixed positive voltage regulator circuit

Manufacturer: HGSEMI
Manufacturer part #: LM7805S/TR
Store part #: C507146
Package / case: TO-263-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,720 in stock

#C507146

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹34.99	₹174.95
50+	₹27.35	₹1,367.50
150+	₹24.07	₹3,610.50
500+	₹19.77	₹9,885.00
2,500+	₹17.95	₹44,875.00
5,000+	₹16.86	₹84,300.00

Quantity (min 5, multiples of 5)

5 × ₹34.99

₹174.95

excl. GST

₹206.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM7805S/TR

₹174.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Ta)
Output Configuration: Positive
Output Current: 1.2A
Operating Voltage: 35V
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.386 g

Overview

The LM78xx series are voltage regulator circuits used in various televisions, radio-cassette recorders, electronic instruments, and equipment. Available types include LM7805/06/08/09/10/12/15/18/24. Packaged in three-terminal plastic TO-220 and TO-263 with heat sink tab.
