HGSEMI

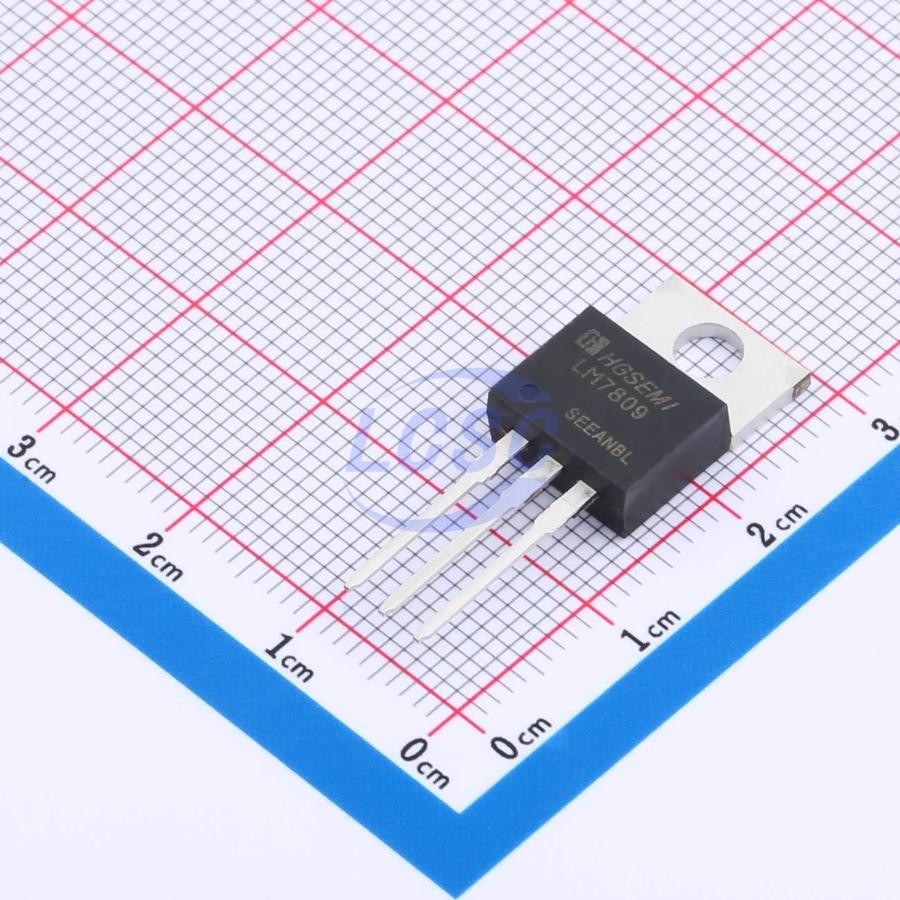

LM7809T

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220

TO-220RoHSActive

Three-terminal fixed positive voltage regulator circuit

Manufacturer: HGSEMI
Manufacturer part #: LM7809T
Store part #: C507141
Package / case: TO-220
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,225 in stock

#C507141

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹34.58	₹172.90
50+	₹26.43	₹1,321.50
150+	₹23.15	₹3,472.50
500+	₹19.05	₹9,525.00
2,000+	₹17.23	₹34,460.00
5,000+	₹16.13	₹80,650.00

Quantity (min 5, multiples of 5)

5 × ₹34.58

₹172.90

excl. GST

₹204.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 50 per tube

LM7809T

₹172.90 for 5 + GST

Specifications

Output Voltage: 9V
Number of Outputs: 1
Operating Temperature: -20℃~+80℃@(Ta)
Output Configuration: Positive
Output Current: 1A
Operating Voltage: 35V
Features: Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.705 g

Overview

The LM78xx series are voltage regulator circuits used in various televisions, radio-cassette recorders, electronic instruments, and equipment. Available types include LM7805/06/08/09/10/12/15/18/24. Packaged in three-terminal plastic TO-220 and TO-263 with heat sink tab.
