HANSCHIP semiconductor

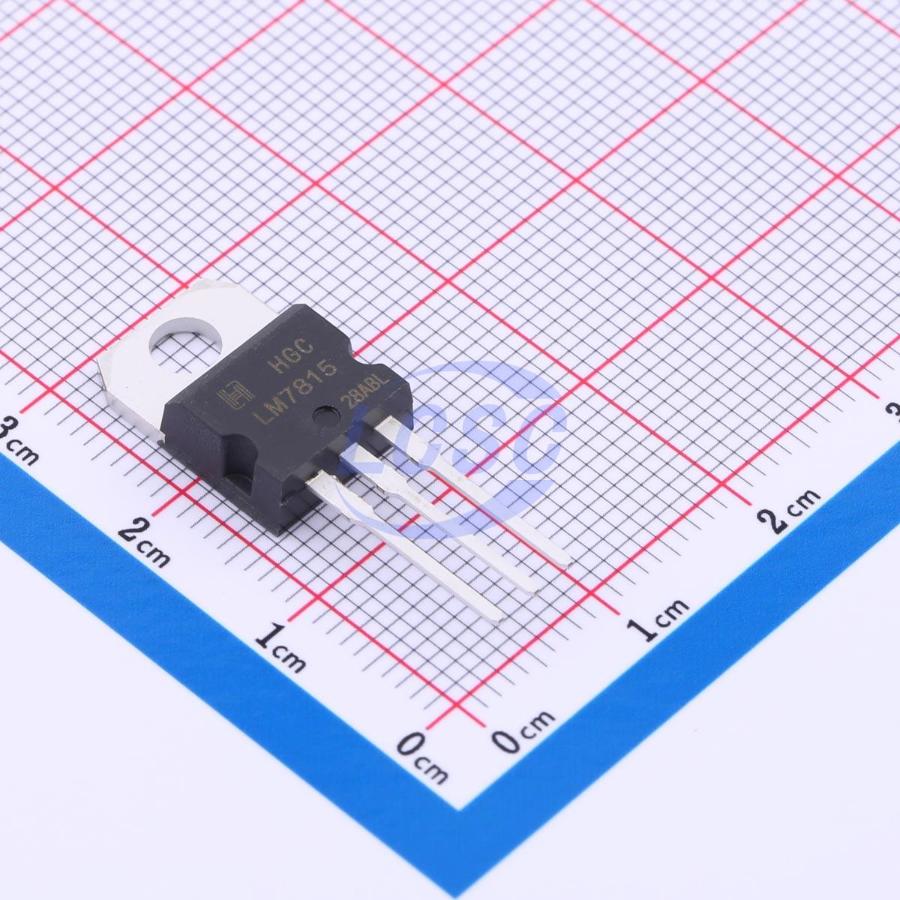

LM7815TG

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220-3L

TO-220-3LROHS CompliantActive

Three-terminal fixed positive voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM7815TG
Store part #: C5145470
Package / case: TO-220-3L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,055 in stock

#C5145470

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹25.30	₹126.50
50+	₹19.65	₹982.50
150+	₹17.40	₹2,610.00
500+	₹14.59	₹7,295.00
2,000+	₹13.35	₹26,700.00
5,000+	₹12.59	₹62,950.00

Quantity (min 5, multiples of 5)

5 × ₹25.30

₹126.50

excl. GST

₹149.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

LM7815TG

₹126.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 15V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 3.18 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	HX7815CTG#C2977112HANSCHIP semiconductor · TO-220-3	HANSCHIP semiconductor	TO-220-3	695	₹24.49 · 695 in stock	View
