HANSCHIP semiconductor

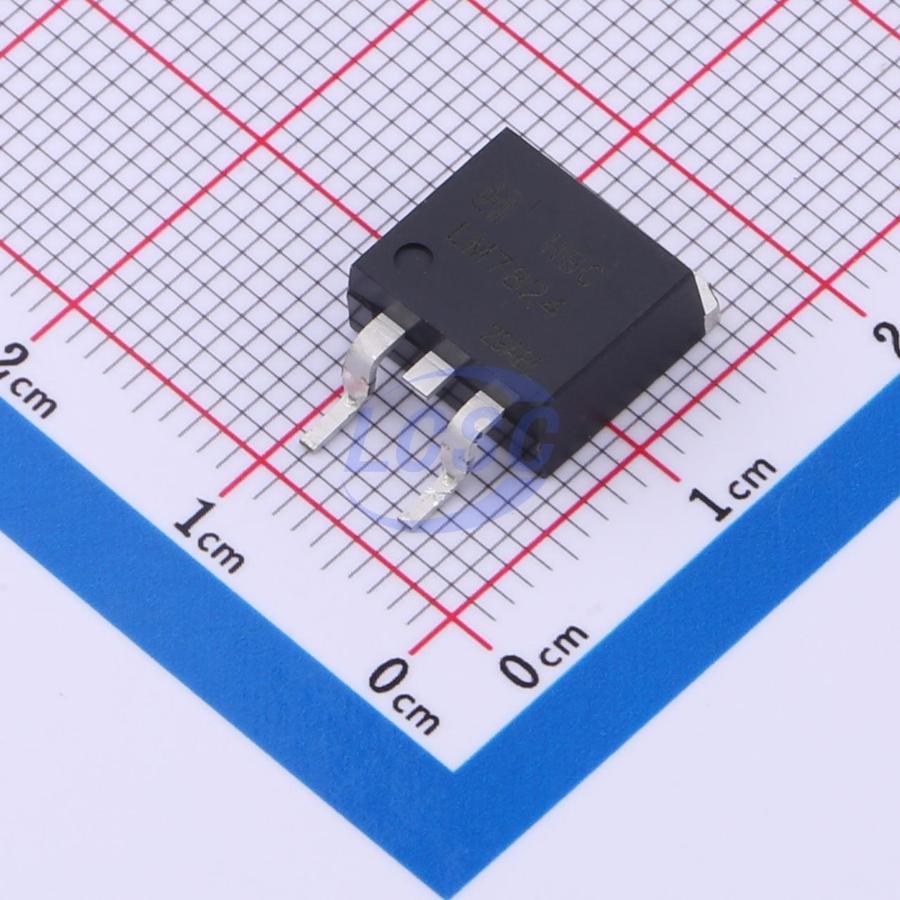

LM7824D2TRG

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-263-2L

TO-263-2LROHS CompliantActive

Three-terminal fixed positive voltage regulator circuit

Manufacturer: HANSCHIP semiconductor
Manufacturer part #: LM7824D2TRG
Store part #: C5145277
Package / case: TO-263-2L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

855 in stock

#C5145277

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
5+	₹41.05	₹205.25
50+	₹32.29	₹1,614.50
150+	₹28.54	₹4,281.00
500+	₹22.81	₹11,405.00
2,500+	₹20.73	₹51,825.00
5,000+	₹19.47	₹97,350.00

Quantity (min 5, multiples of 5)

5 × ₹41.05

₹205.25

excl. GST

₹242.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM7824D2TRG

₹205.25 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 24V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃
Output Configuration: Positive
Operating Voltage: 35V
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.21 g

Overview

The LM78xx series are voltage regulator circuits used in televisions, tape recorders, electronic instruments, and equipment. Available variants include LM7805/06/08/09/10/12/15/18/24. Packaged in three-terminal plastic TO-220 and TO-263 with heatsink tab.
