HGSEMI

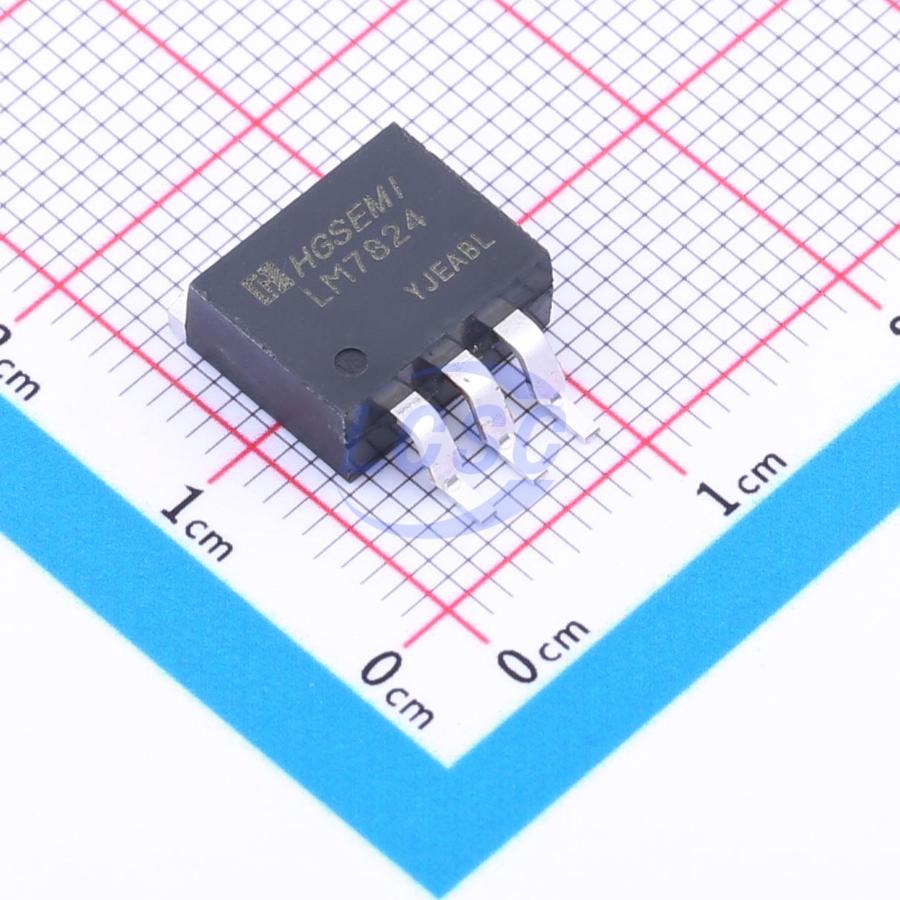

LM7824S/TR

Linear Voltage Regulator IC Positive Fixed 1 Output 1.2A TO-263-3

TO-263-3RoHSActive

Three-Terminal Fixed Positive Voltage Regulator

Manufacturer: HGSEMI
Manufacturer part #: LM7824S/TR
Store part #: C2902511
Package / case: TO-263-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,780 in stock

#C2902511

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹39.47	₹197.35
50+	₹31.25	₹1,562.50
150+	₹27.73	₹4,159.50
500+	₹24.32	₹12,160.00
2,500+	₹22.37	₹55,925.00
5,000+	₹21.19	₹1,05,950.00

Quantity (min 5, multiples of 5)

5 × ₹39.47

₹197.35

excl. GST

₹232.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 500 per reel

LM7824S/TR

₹197.35 for 5 + GST

Specifications

Output Voltage: 24V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃@(Ta)
Output Configuration: Positive
Output Current: 1.2A
Operating Voltage: 35V
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 2.244 g

Overview

The LM78xx series are voltage regulator circuits used in various televisions, radio-cassette recorders, electronic instruments, and equipment. Available types include LM7805/06/08/09/10/12/15/18/24. Packaged in three-terminal plastic TO-220 and TO-263 with heat sink tab.
