HANSCHIP semiconductorDatasheet (PDF)

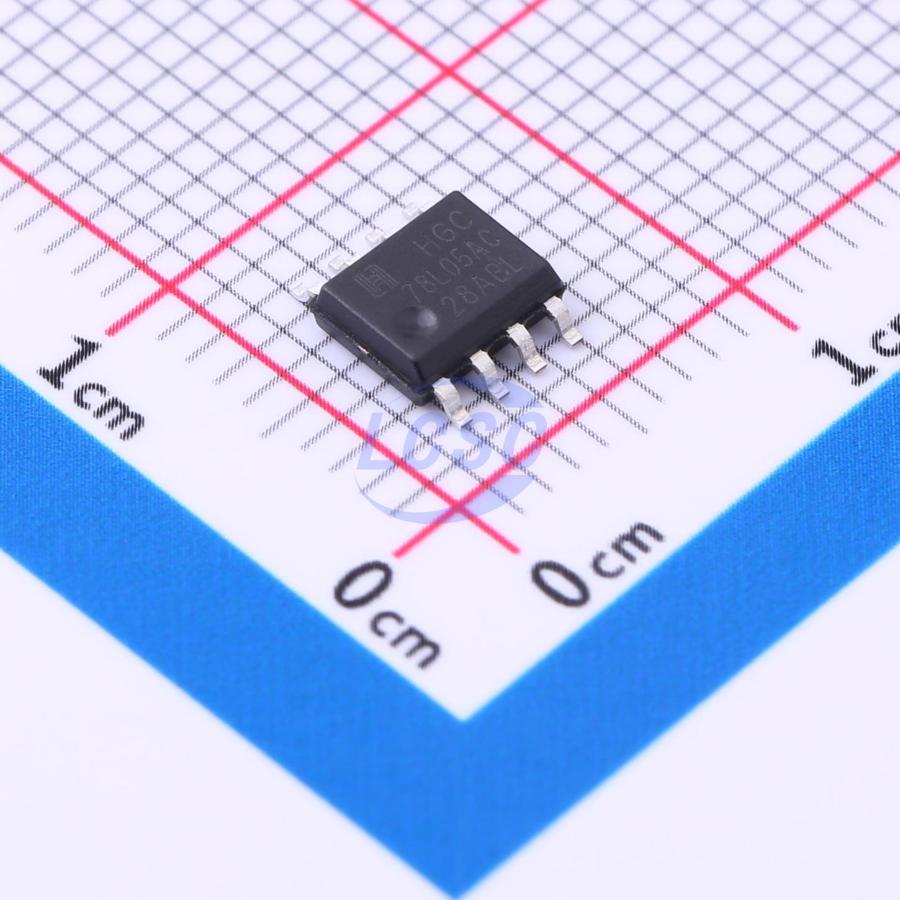

LM78L05ACDRG
5V Positive Fixed SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOP-8ROHS CompliantActive
IC REG LINEAR 5V 100mA SOP-8
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LM78L05ACDRG
- Store part #
- C5145270
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,550 in stock
#C5145270
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.16 | ₹81.60 |
| 100+ | ₹6.50 | ₹650.00 |
| 300+ | ₹5.66 | ₹1,698.00 |
| 2,500+ | ₹4.83 | ₹12,075.00 |
| 5,000+ | ₹4.34 | ₹21,700.00 |
| 10,000+ | ₹4.09 | ₹40,900.00 |
10 × ₹8.16
₹81.60
excl. GST
₹96.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM78L05ACDRG
₹81.60 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+70℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 20V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.2 g
Overview
The LM78LxxA series three-terminal regulators incorporate internal current limiting and thermal shutdown protection, making them inherently highly reliable. With adequate heat sinking, output current up to 100mA is available. These devices are intended for use as fixed voltage regulators in a wide range of applications, including local or on-board regulation to eliminate noise and solve distribution problems associated with single-point regulation. They can also be used with power-pass elements to form high-current voltage regulators. As a replacement for zener diode/resistor combinations, the LM78LxxA series typically improves output impedance by approximately two orders of magnitude, while offering lower quiescent current and lower noise.
Applications
- Local or on-board regulation
- Noise elimination
- High-current regulator in combination with pass elements
- Zener diode/resistor combination replacement
Key features
- Output current up to 100mA
- Output voltages: 3.3V, 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V
- Thermal overload protection
- Short-circuit protection
- No external components required
- ±5% accuracy
