HTCDatasheet (PDF)

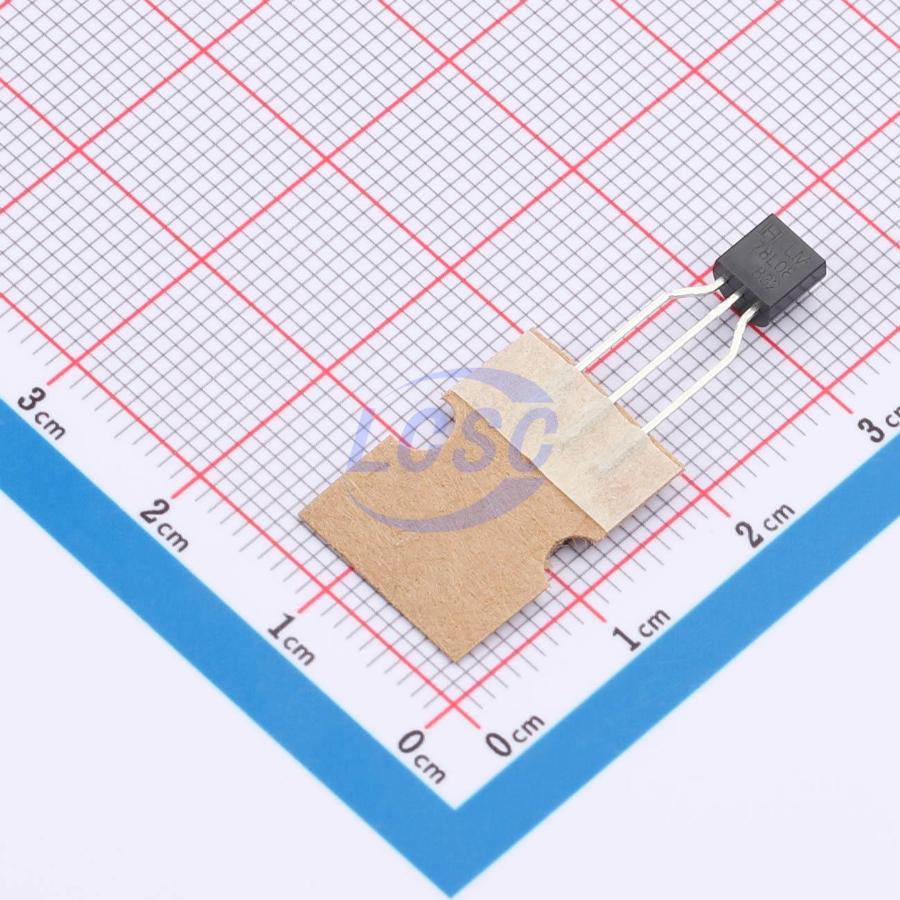

LM78L08TA
8V Positive Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS CompliantActive
- Manufacturer
- HTC
- Manufacturer part #
- LM78L08TA
- Store part #
- C24488272
- Package / case
- TO-92
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,975 in stock
#C24488272
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.85 | ₹54.25 |
| 50+ | ₹8.52 | ₹426.00 |
| 150+ | ₹7.36 | ₹1,104.00 |
| 500+ | ₹6.48 | ₹3,240.00 |
| 2,000+ | ₹5.79 | ₹11,580.00 |
| 4,000+ | ₹5.44 | ₹21,760.00 |
5 × ₹10.85
₹54.25
excl. GST
₹64.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per box
LM78L08TA
₹54.25 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 23V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2.4 g
Overview
This series of fixed-voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications. These applications include on-board regulation to eliminate the noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to form high-current voltage regulators. Each regulator provides up to 100mA of output current. Internal current limiting and thermal shutdown features make them essentially immune to overload. Current limiting is included to cap the peak output current (250mA ~ 300mA) at a safe value. When used as a replacement for zener diode-resistor combinations, significant improvements in output impedance and lower quiescent current can be achieved.
Key features
- Output current up to 100mA
- No external components required
- Internal thermal overload protection
- Internal short-circuit current limiting
- Output voltages of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, and 24V
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM78L08#C262533HTC · TO-92-3 | HTC | TO-92-3 | 5 | ₹10.31 · 5 in stock | View |
 | UA78L08ACLPR#C2870461TI · TO-92-3 | TI | TO-92-3 | 10 | ₹166.79 · 10 in stock | View |
 | CJ78L08#C8612JSCJ · TO-92-3 | JSCJ | TO-92-3 | 540 | ₹8.02 · 540 in stock | View |
 | 78L08#C358372BLUE ROCKET · TO-92-3 | BLUE ROCKET | TO-92-3 | 1,600 | ₹10.33 · 1,600 in stock | View |
 | L78L08ACZ#C2688680ST · TO-92-3 | ST | TO-92-3 | 750 | ₹24.63 · 750 in stock | View |
