HTCDatasheet (PDF)

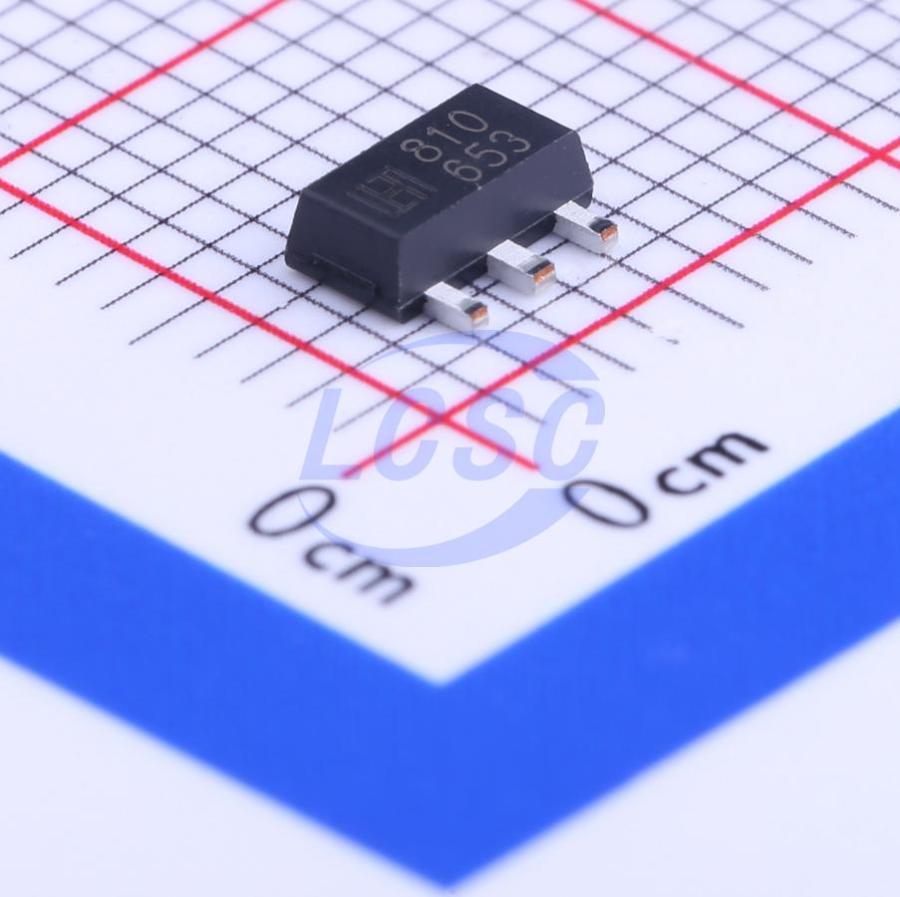

LM78L10F
10V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATOR
- Manufacturer
- HTC
- Manufacturer part #
- LM78L10F
- Store part #
- C126066
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,855 in stock
#C126066
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.01 | ₹115.05 |
| 50+ | ₹18.25 | ₹912.50 |
| 150+ | ₹16.20 | ₹2,430.00 |
| 1,000+ | ₹13.65 | ₹13,650.00 |
| 2,000+ | ₹12.52 | ₹25,040.00 |
| 5,000+ | ₹11.84 | ₹59,200.00 |
5 × ₹23.01
₹115.05
excl. GST
₹135.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM78L10F
₹115.05 for 5 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 25V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.81 g
Overview
This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100 mA of output current. The internal limiting and thermal shutdown features of these regulators make them essentially immune to overload. Current limiting is include to limit the peak output current (250 mA ~ 300 mA) to a safe value. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained together with lower-bias current.
Key features
- Output Current Up to 100 mA
- No External Components
- Internal Thermal Overload Protection
- Internal Short-Circuit Limiting
- Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V
- Moisture Sensitivity Level 3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L10#C6718417DOWO · SOT-89 | DOWO | SOT-89 | 720 | ₹6.40 · 720 in stock | View |
| 78L10#C41433762YFW · SOT-89 | YFW | SOT-89 | 960 | ₹7.50 · 960 in stock | View | |
 | 78L10#C41424779HXY MOSFET · SOT-89 | HXY MOSFET | SOT-89 | 20 | ₹5.56 · 20 in stock | View |
 | 78L10A#C22400115Shikues · SOT-89 | Shikues | SOT-89 | 540 | ₹5.93 · 540 in stock | View |
 | MS78L10#C2914435MSKSEMI · SOT-89 | MSKSEMI | SOT-89 | 370 | ₹8.25 · 370 in stock | View |
